Air Bag Systems: Locations



Air Bag Supplemental Restraint System (SRS)

The air bag supplemental restraint system (SRS) is designed to provide increased collision protection for vehicle occupants in addition to that provided by the three-point safety belt system. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantages of the SRS.

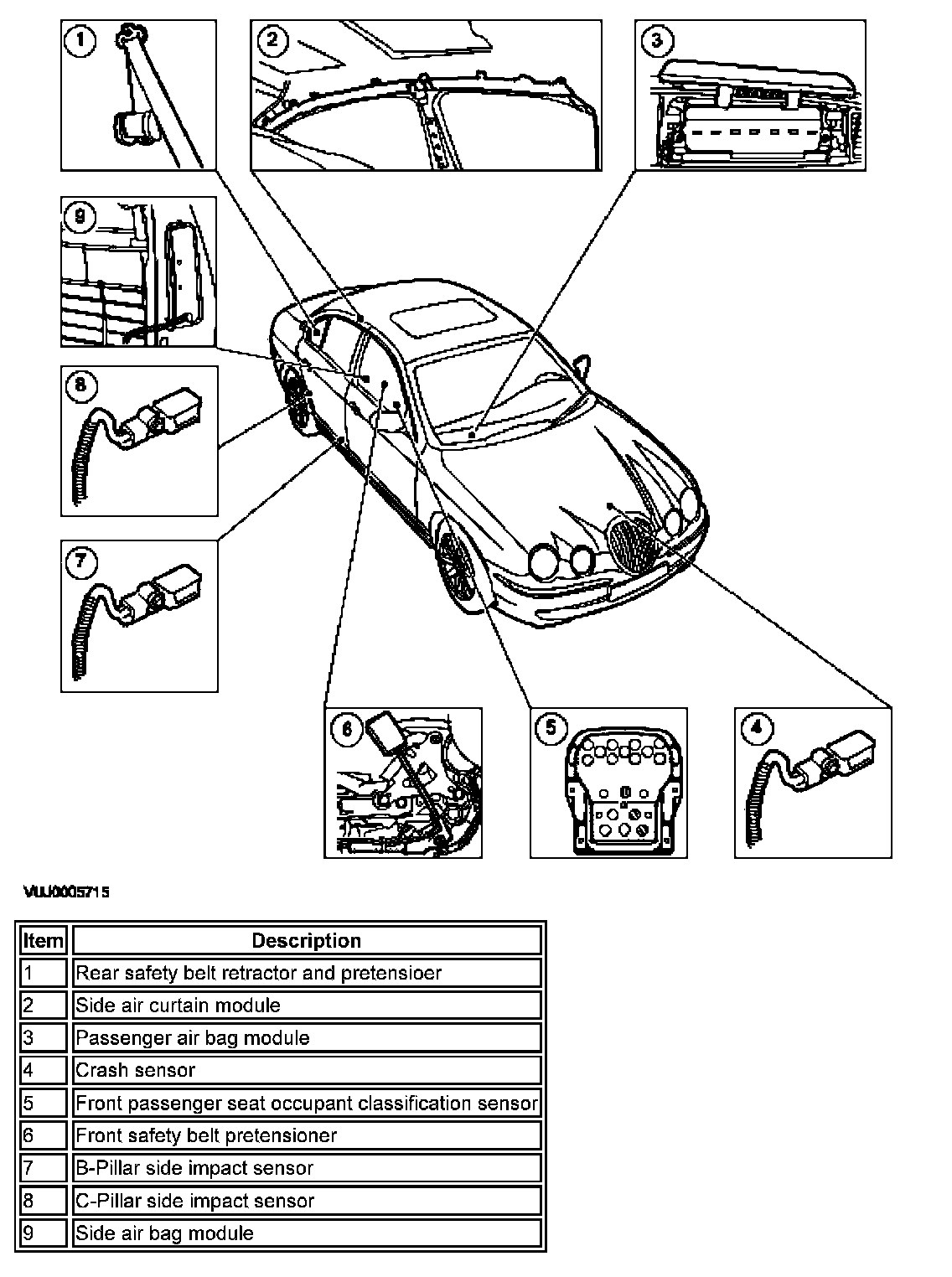

The air bag supplemental restraint system (SRS) components are shown in the following illustrations.










Air Bag Supplemental Restraint System (SRS) Components
