Camshaft Bearing

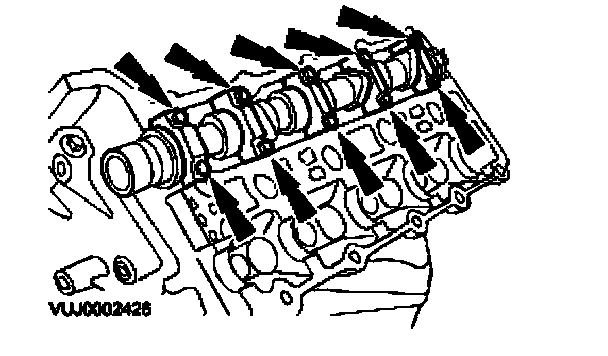

Camshaft RH - VIN Range: M45255->N52206
CAUTION: Alternate bolt tightening to correctly seat the
camshaft bearing caps.
Install the
camshaft bearing cap bolts evenly.
Tighten to
10 Nm.

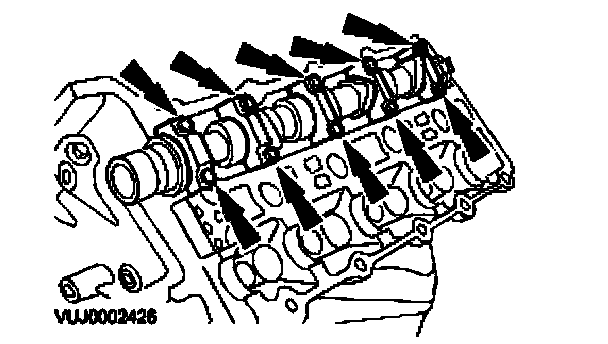

Camshaft RH - VIN Range: N52207->N99999
CAUTION: Alternate bolt tightening to correctly seat the
camshaft bearing caps.
Install the
camshaft bearing cap bolts evenly.
Tighten to
10 Nm.
