Power Seat Switch: Service and Repair



Seat Control Switch

Removal

All vehicles
1. Remove the front seat.

CAUTION: Make sure that all trim panels are protected when the seat is removed from the vehicle.

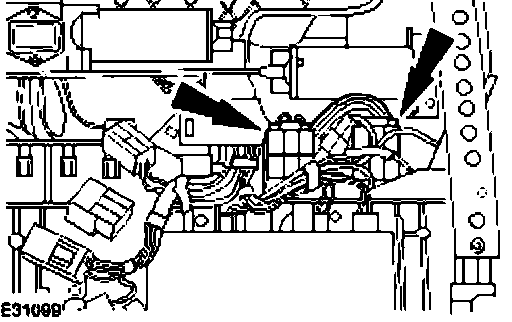

2. Disconnect the seat control switch electrical connectors.








Vehicles built up to 01/2004

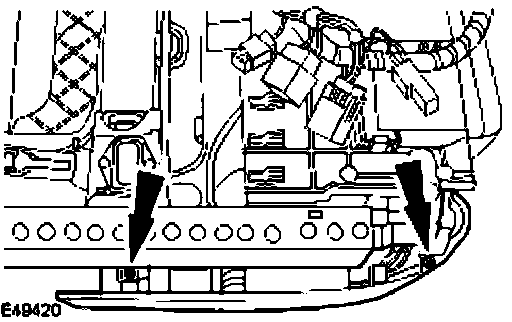

1. Detach the front seat outer trim panel.
- Remove the front seat outer trim panel retaining screws.







Vehicles built 02/2004 onwards

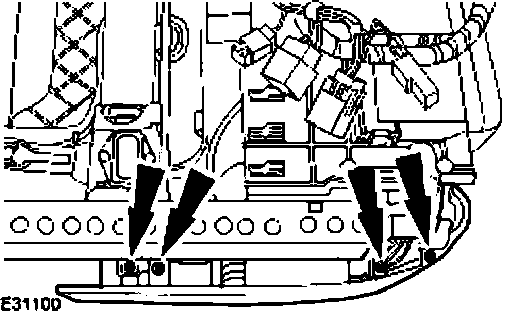

1. Detach the front seat outer trim panel.
- Remove the front seat outer trim panel retaining screws.







All vehicles

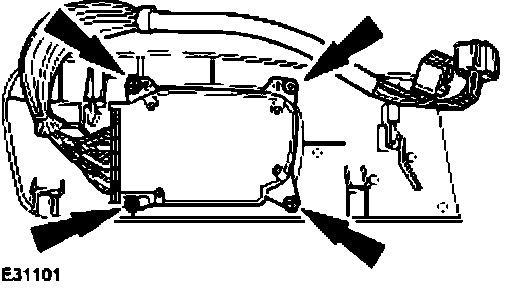

1. Remove the seat control switch.




Installation
1. To install, reverse the removal procedure.
