Cruise Control: Adjustments

Speed Control Module Alignment

Inclinometer 501-F007:

Special Service Tools

NOTE: Make sure the vehicle is positioned on level ground such as the headlamp alignment area.

1. Remove the left-hand front bumper access cover.

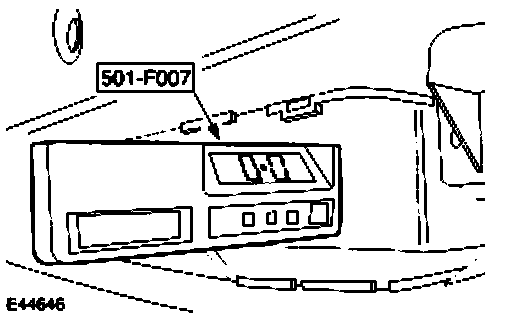

2. Using the special tool, check the speed control module vertical levelling.







3. Level the speed control module.

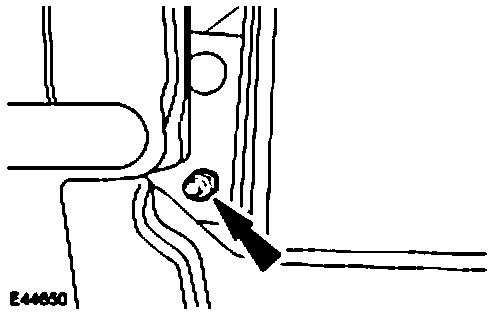

- Rotate the speed control module levelling bolt to achieve a reading of zero degrees ± 0.75 degree.







4. Using the special tool, check the speed control module vertical levelling.







5. Install the left-hand front bumper access cover.
6. Carry out the speed control module calibration procedure.
