Cruise Control Switch: Description and Operation

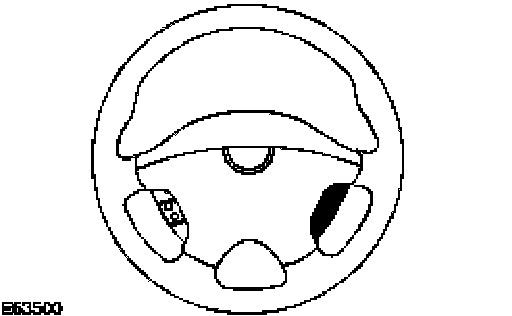

Speed Control Steering Wheel Switches







RESUME Switch
When the RESUME switch is operated with the vehicle travelling above 32 kph (20 mile/h) with the system in STANDBY mode, the vehicle is allowed to accelerate until the last set speed is resumed. The RESUME switch will not function if the ignition switch has been cycled or if the vehicle speed is below 32 kph (20 mile/h).

CANCEL Switch
When the CANCEL switch is operated with the vehicle travelling above 32 kph (20 mile/h) the system will enter STANDBY mode.

SET Switch
When the SET +/- switch is operated with the vehicle travelling above 32 kph (20 mile/h) the system allows the vehicle speed to be maintained to ± 1.62 kph (1 mile/h). Pressing the SET +/- switch will increase or decrease the vehicle speed respectively until the switch is released. If the respective switch is pressed momentarily, the speed will accelerate or decelerate in 1.62 kph (1 mile/h) increments.
