Tire Monitoring System

Tire Pressure Monitoring System: NAS V8 SC

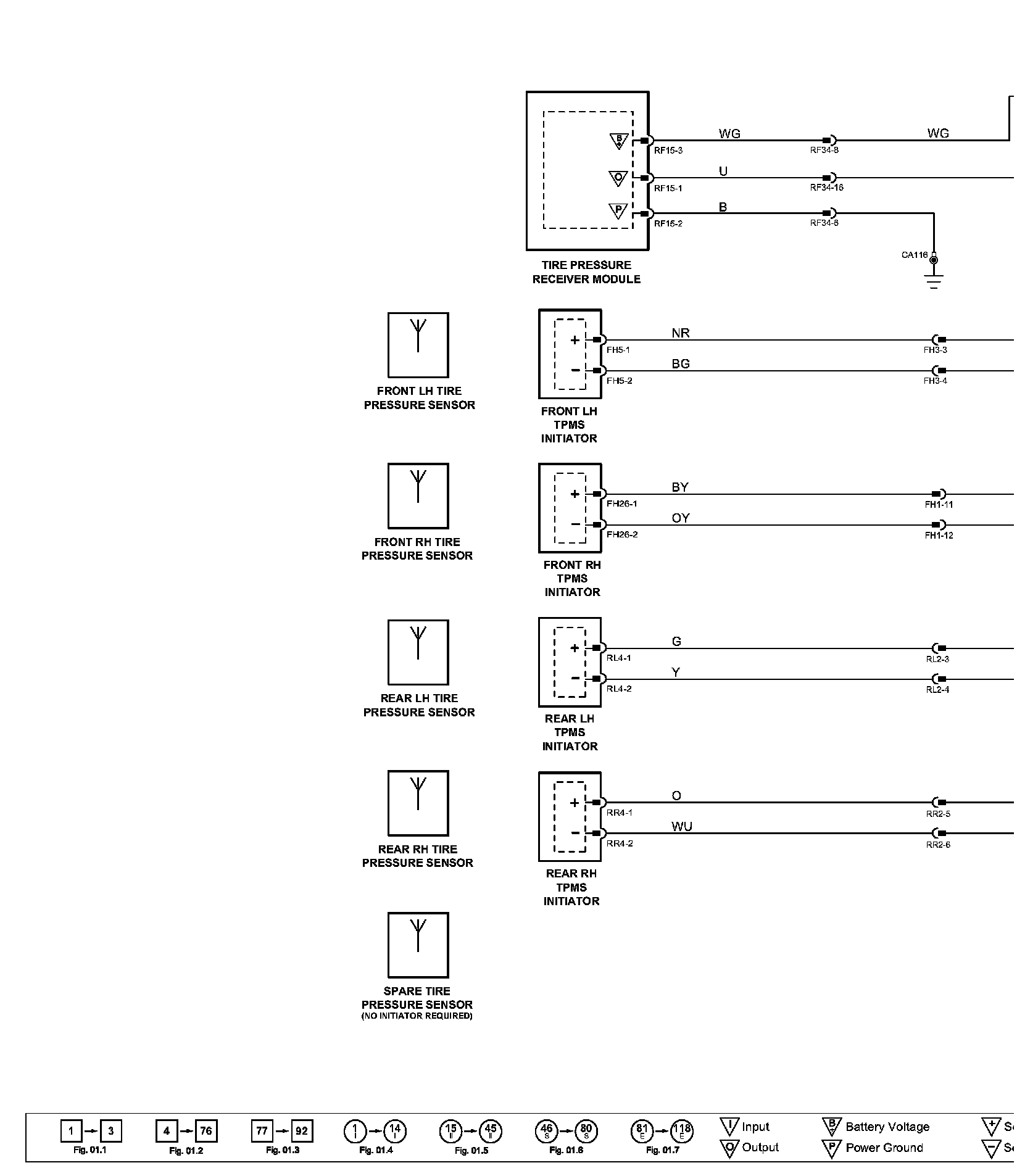

x��Diagram Figure 05.5:

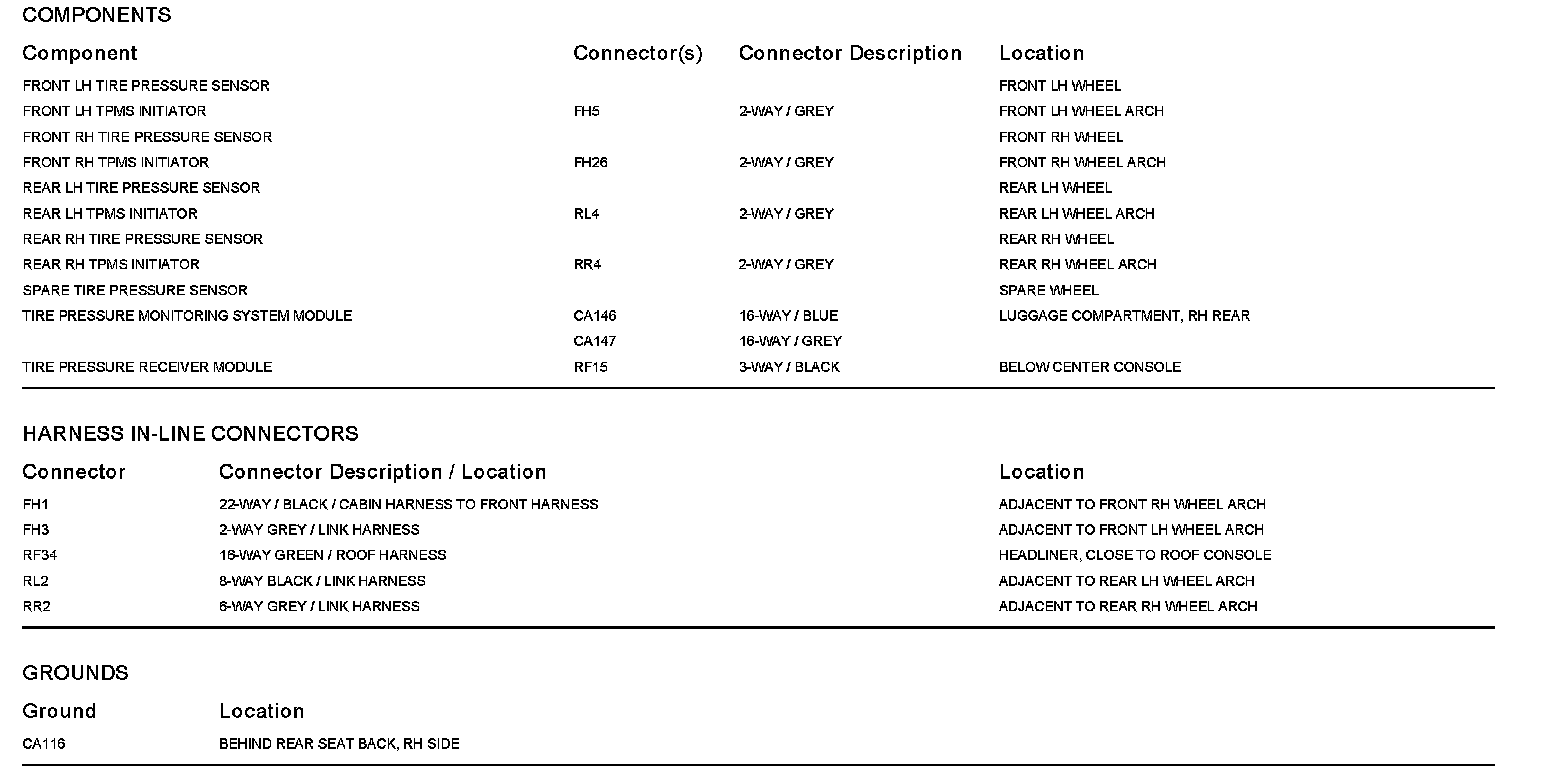

Diagram Data Sheet 05.5 (Part 1):

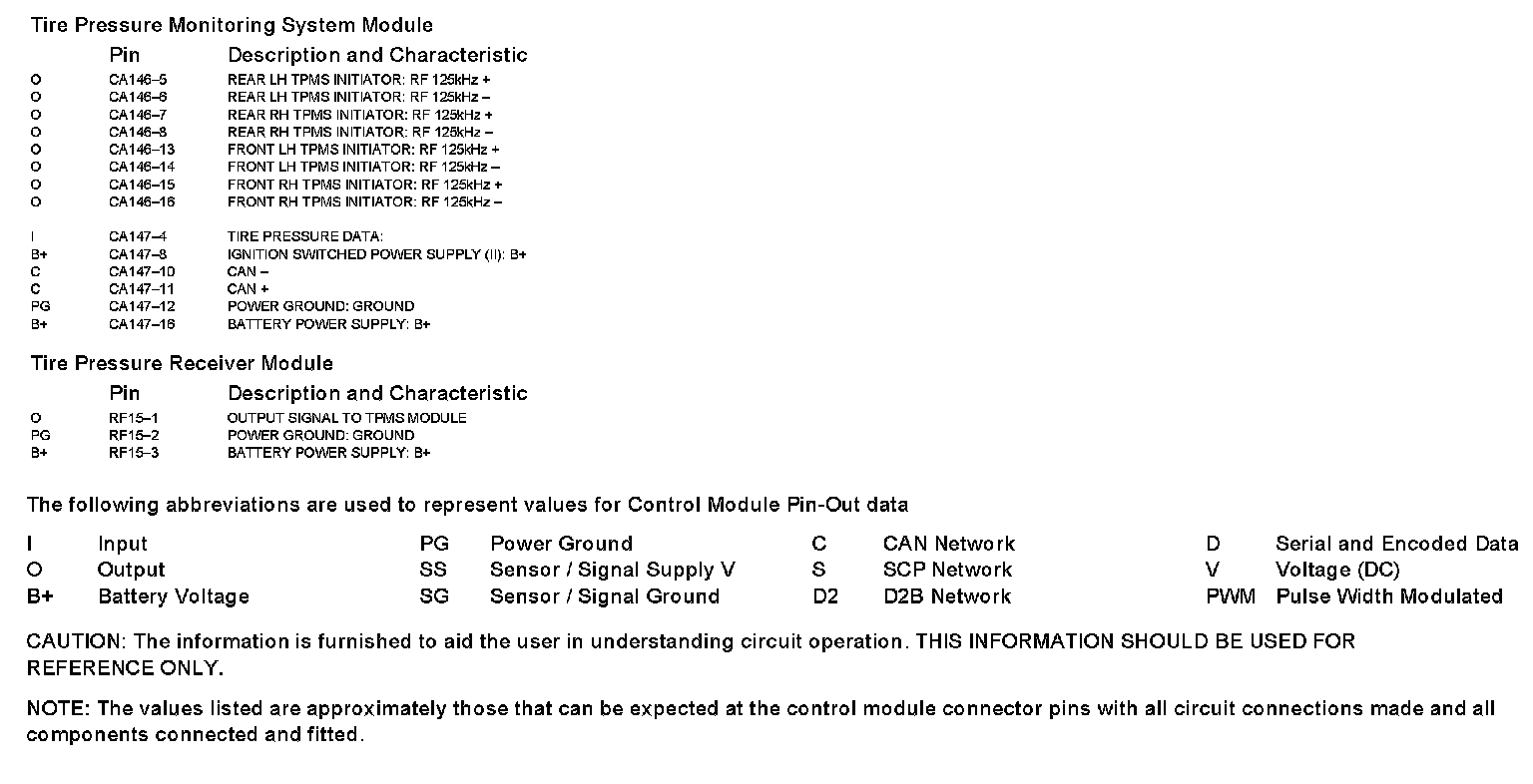

Diagram Data Sheet 05.5 (Part 2):

Diagrams: Other diagrams referred to by Fig. number (i.e. 01.1, 20.4, etc) within these diagrams can be found at the vehicle level under Diagrams by Figure Number. Diagrams

Locations: The location views for Ground Points, In-Line Harnesses, and Control Modules depicted within these diagrams can be found at Vehicle/Locations. Locations

Connector Views: The connector views/pin-outs for the Control Modules depicted within these diagrams can be found at the vehicle level connector views. Connector Views
