Wiper Pivot Arm

Wiper Pivot Arm

Special Service tools

Removal

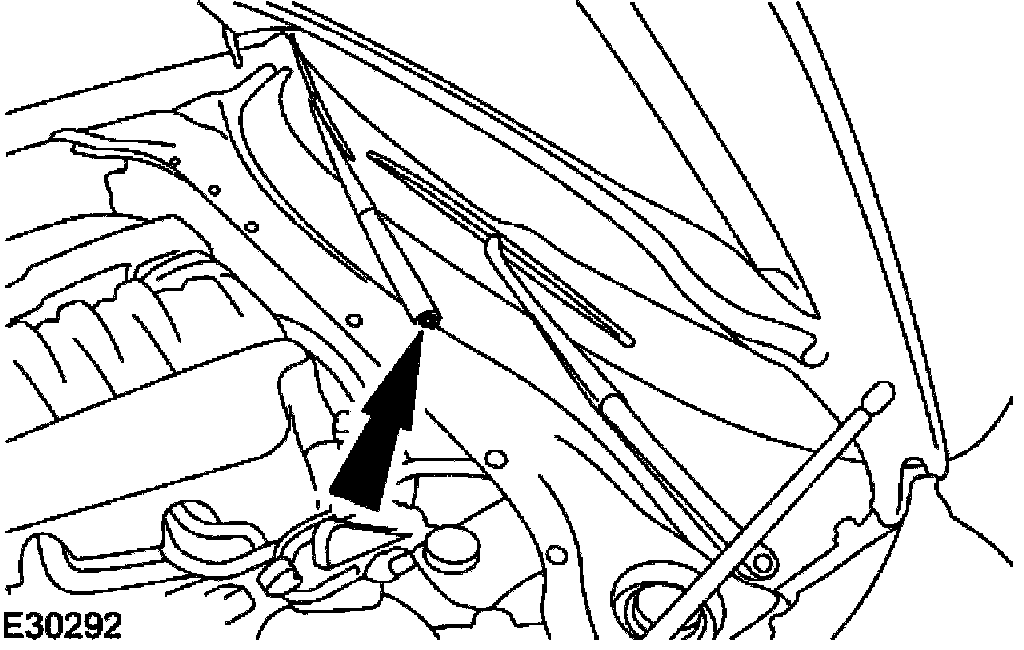

1. Remove the wiper pivot arm retaining nut cover.

2. Remove the wiper pivot arm retaining nut.

3. NOTE: Left-hand shown, right-hand similar.

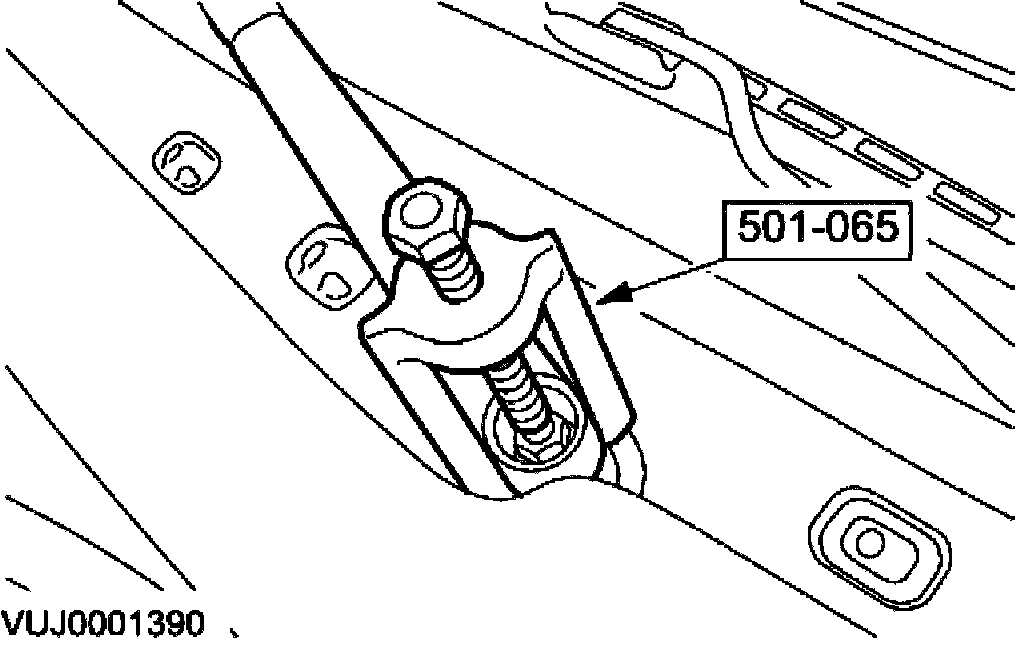

Using the special tool, remove the wiper pivot arm.

Installation

1. NOTE: Make sure the wiper pivot arm is correctly aligned with the alignment mark on the windshield.

To install, reverse the removal procedure.
1. Tighten to 17 Nm.
