Driver Seat Module
Driver Seat Module (DSM)RemovalElectronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.
1.
Remove the front seat.
2.

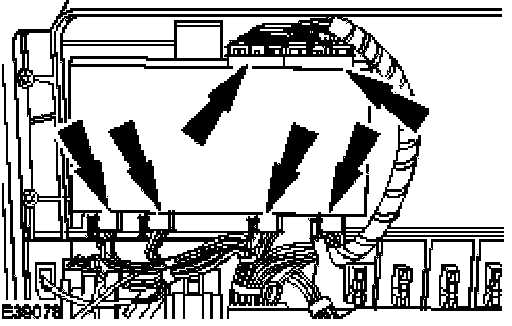

Disconnect the electrical connectors.
3.

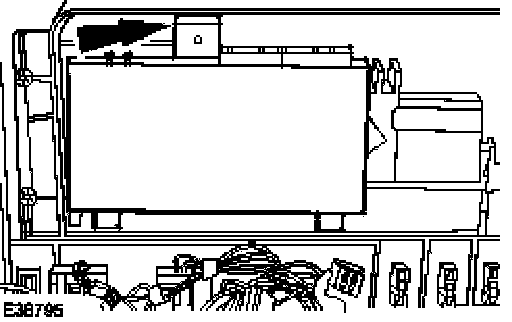

Remove the driver seat module (DSM).
-
Release the retaining tang
Installation 1.
To install, reverse the removal procedure.
