Front Electronic Module



Front Electronic Module (FEM)

Removal
1. Prior to removal of the module, upload module configuration information to the Jaguar approved diagnostic system. This information needs to be downloaded into the new module once installed.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

2. Disconnect the battery ground cable.
3. Remove the left-hand cowl side trim panel.

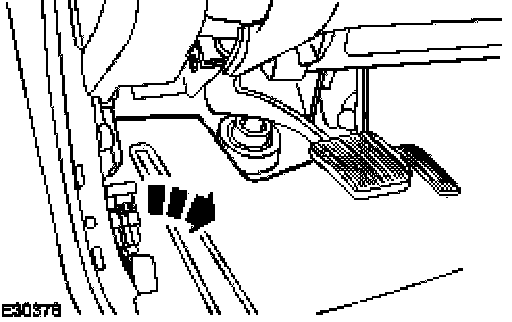

4. Reposition the floor covering.

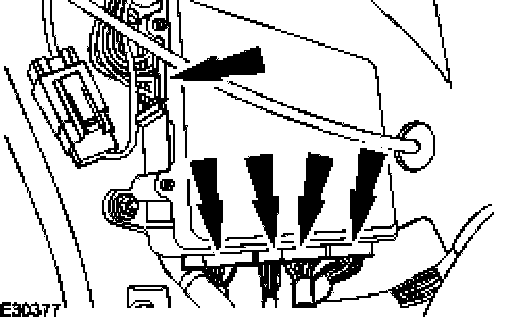

5. Disconnect the electrical connectors.

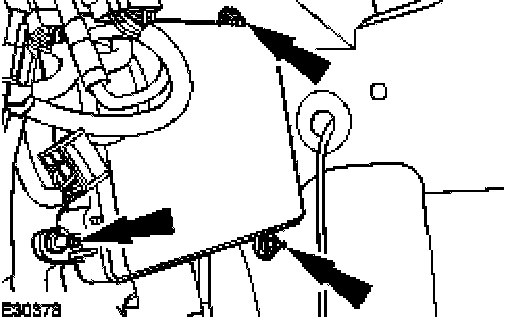

6. Remove the front electronic module (FEM).

Installation







1. To install, reverse the removal procedure.
- Tighten to 6 Nm.
2. After installation of the module, download module configuration information to the new module.
