Front Subframe: Description and Operation

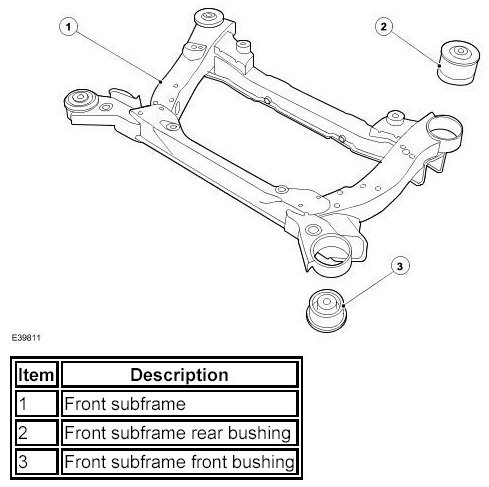

Frame AssemblyFront SubframeThe front
subframe is bolted to the body and aids in structural support. The subframe provides the mounting surface for the
steering gear, the front
suspension lower arms, the
stabilizer bar and the engine mounts.
