Rear Subframe Front Bushing



Rear Subframe Front Bushing

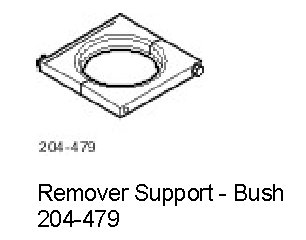

Special Service Tools



















Removal
1. Remove the rear subframe.
2. Install the special tool to the rear subframe front bushing.







3. NOTE: Note the orientation of the bushing before removal.

Using the special tools, remove the rear subframe front bushing.







Installation

1. NOTE: Make sure the bushing is correctly orientated.

Using the special tools, install the rear subframe front bushing.







2. Install the rear subframe.
