Speed Control Sensor



Speed Control Sensor

Removal
1. Disconnect the battery ground cable.
2. Remove the radiator splash shield.

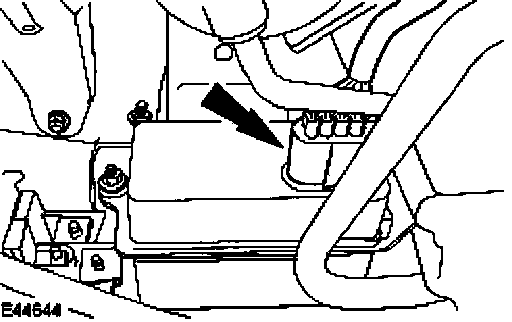

3. Disconnect the speed control sensor electrical connector.

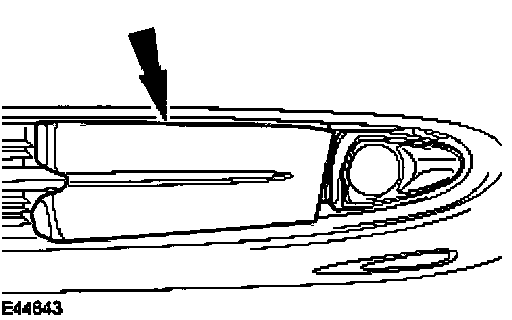

4. Remove the left-hand front bumper access cover.

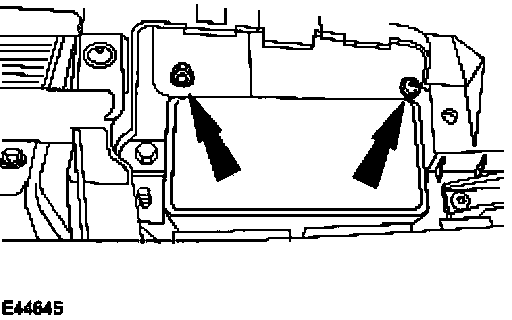

5. Remove the speed control sensor.
- Remove the bolts.

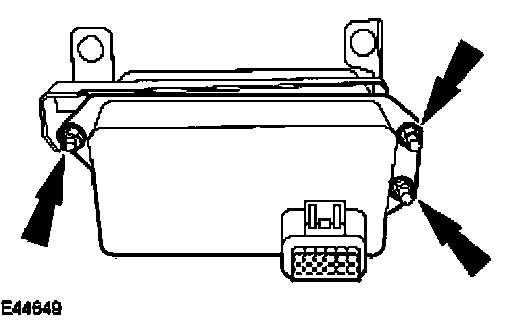

6. Remove the speed control sensor retaining bracket.
- Remove the nuts.







Installation
1. Install the speed control sensor retaining bracket.
- Install the nuts.
- Tighten to 5 Nm.

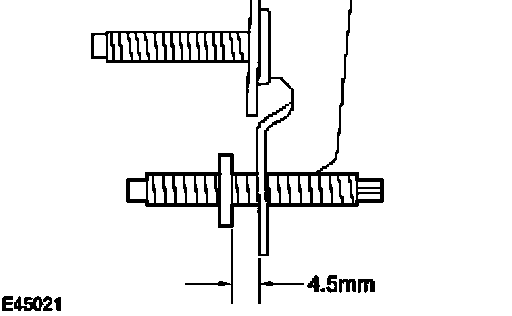

2. Adjust the speed control sensor levelling bolt shoulder to mounting bracket clearance to 4.5 mm.







3. Install the speed control sensor.
- Tighten to 5 Nm.

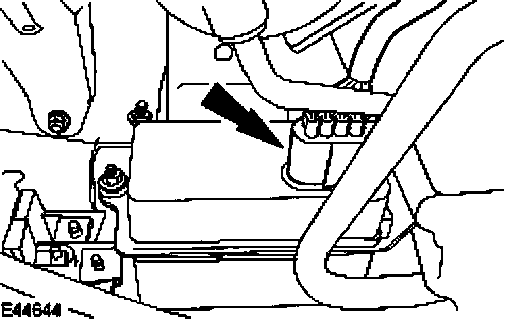

4. Connect the speed control sensor electrical connector.







5. Install the radiator splash shield.
6. Connect the battery ground cable.
7 . Check and adjust the speed control sensor levelling.
8. Install the left-hand front bumper access cover.







9. Initialize the system.
