Automatic Transmission/Transaxle

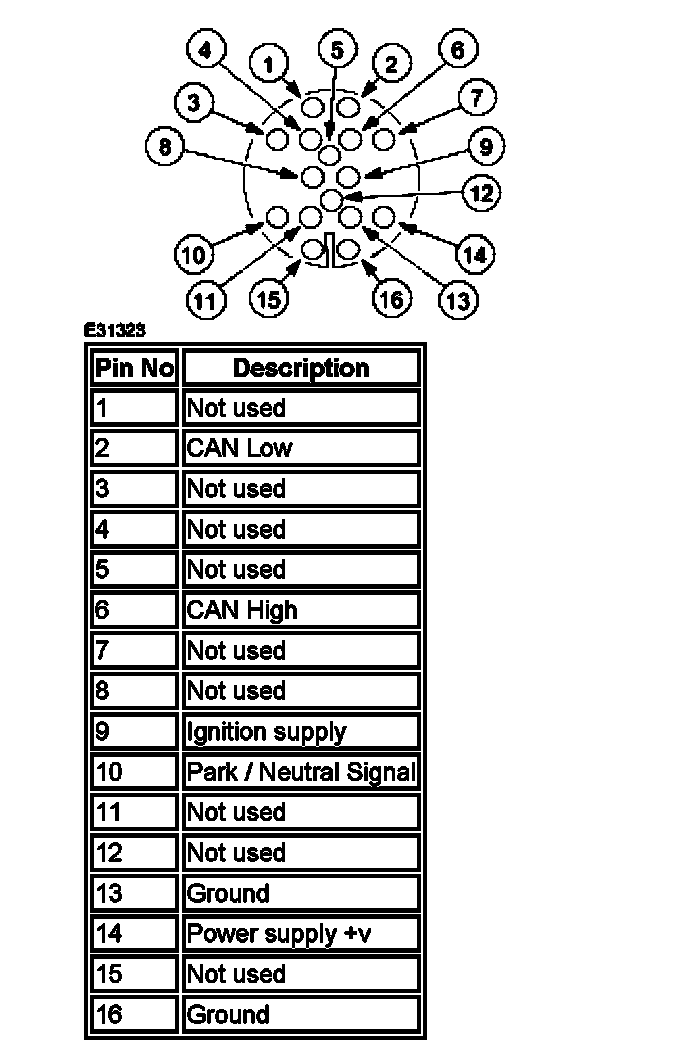

Transmission Link Harness Electrical Connector Layout





CAUTION: When working with the transmission control module (TCM) and main control valve body, all suitable safety precautions must be taken to protect the component against electrostatic discharge.

CAUTION: Do not carry out any electrical tests on the TCM and main control valve body. Failure to follow these instructions may result in component damage.

CAUTION: Make sure all suitable safety precautions are taken to protect the transmission control module (TCM) and main control valve body electrical connector pins against electrostatic discharge.
