Control Assembly: Service and Repair



Auxiliary Climate Control Assembly

Removal

CAUTION: Make sure damage does not occur to the auxiliary climate control assembly finish panel.

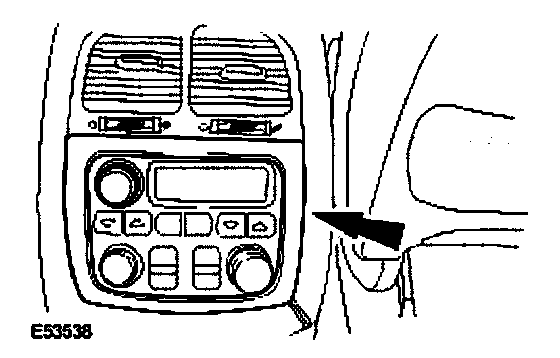

1. Remove the auxiliary climate control assembly finish panel.







2. Detach the auxiliary climate control assembly.

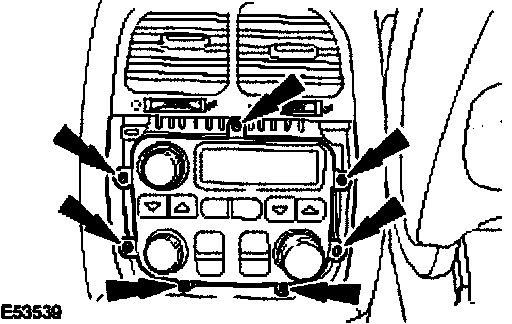

- Remove the auxiliary climate control assembly retaining screws.







3. Remove the auxiliary climate control assembly.
- Disconnect the auxiliary climate control assembly electrical connectors.







Installation
1. To install, reverse the removal procedure.
