Discharge Air Temperature Sensor / Switch: Service and Repair



82.20.64

Air Discharge Temperature Sensor

Removal
1. Disconnect the battery ground cable.
2. Remove the instrument panel.

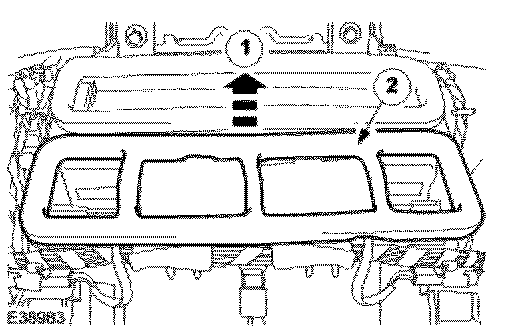

3. Remove the foam seal and filter screen.
- Remove the foam seal.
- Remove the filter screen.

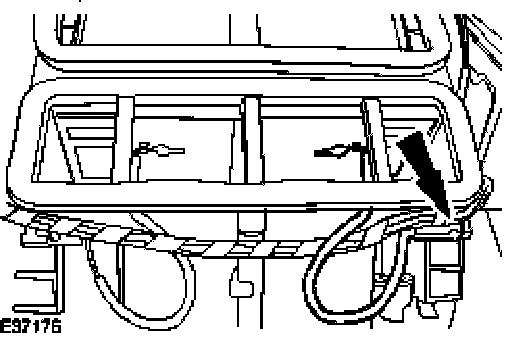

4. Remove the air discharge temperature sensor.
- Disconnect the air discharge temperature sensor electrical connector.

NOTE: Right-hand shown, left-hand similar.

Installation
1. To install, reverse the removal procedure.
