Tire Pressure Module: Service and Repair

Tire Pressure Monitoring System Module
Removal

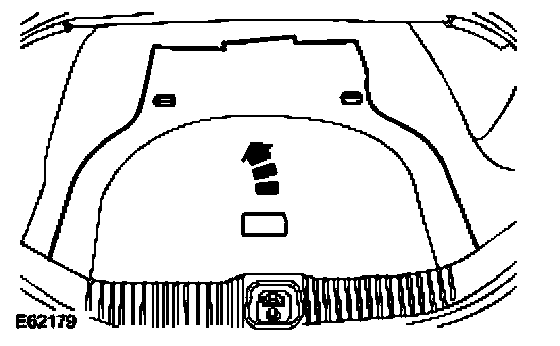

1. Reposition the luggage compartment floor covering.

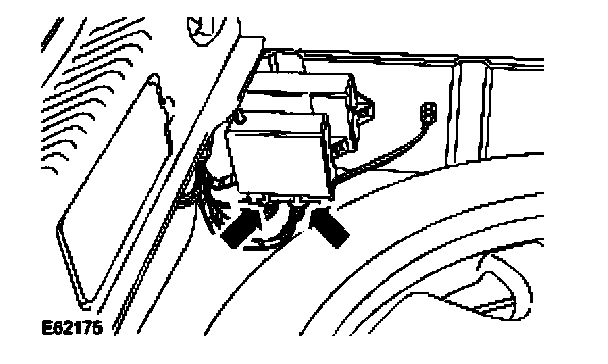

2. Disconnect the tire pressure monitoring system module electrical connectors.

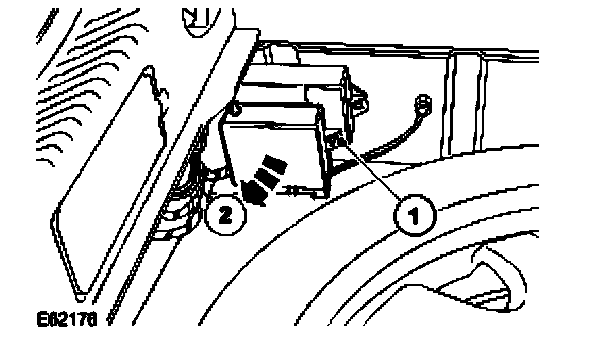

3. Reposition the tire pressure monitoring system module.
^ Remove the retaining nut.
^ Reposition the tire pressure monitoring system module.

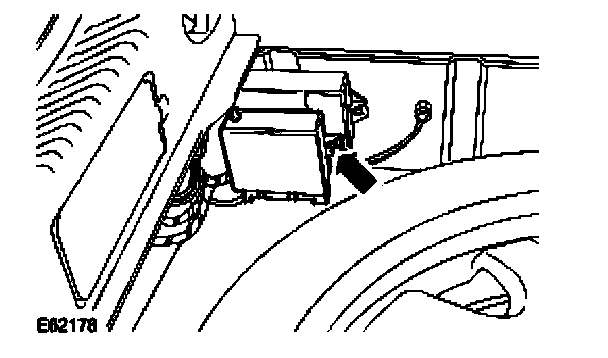

4. Remove the tire pressure monitoring system module.
^ Disconnect the external antenna.

Installation





1. To install, reverse the removal procedure.
^ Tighten to 5 Nm.
