Air Temperature Sensor ( Ambient / Intake ): Service and Repair

Intake Air Temperature (IAT) Sensor - Vehicles With: Supercharger (18.30.52)

Removal

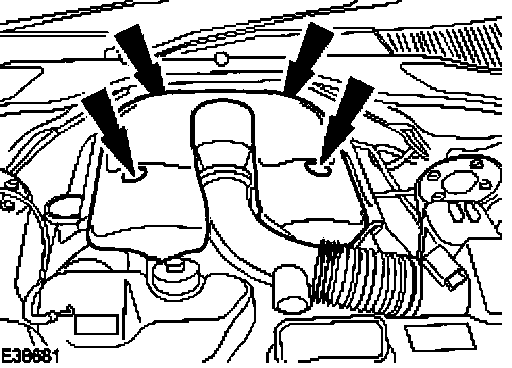

1. Remove the engine cover.

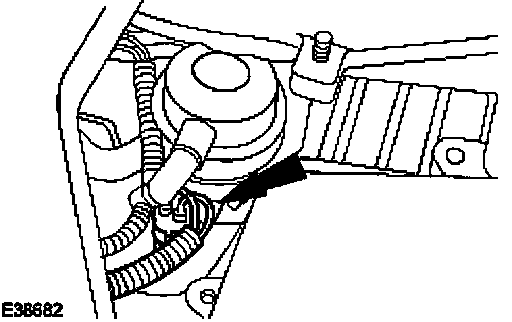

2. Disconnect the intake air temperature (IAT) sensor electrical connector.

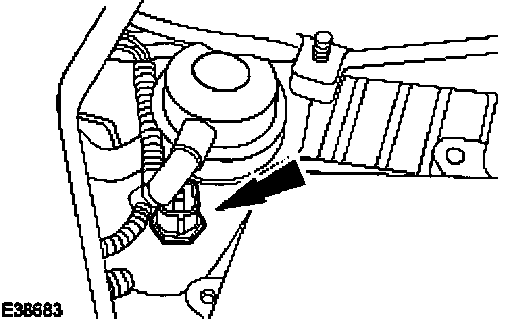

3. Remove the IAT sensor.
- Remove and discard the IAT sensor sealing washer.

Installation
1. To install, reverse the removal procedure.
- Install a new IAT sensor sealing washer.
- Tighten to 35 Nm.
