Ignition Coil: Service and Repair
Ignition Coil-On-Plug (18.20.40)Removal 1.

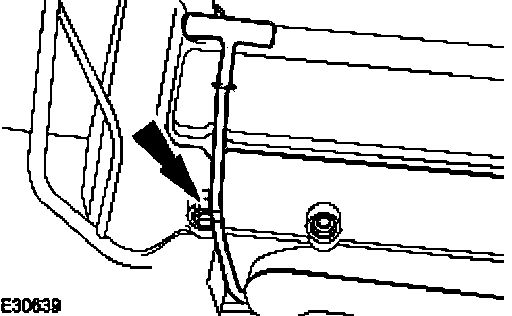

Remove the oil level indicator.
NOTE: Left-hand shown, right hand similar.
2.

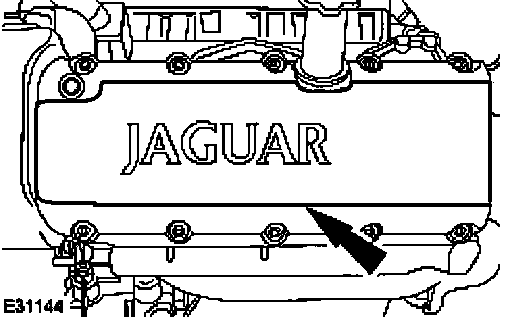

Remove the
ignition coil-on-plug cover.
3.

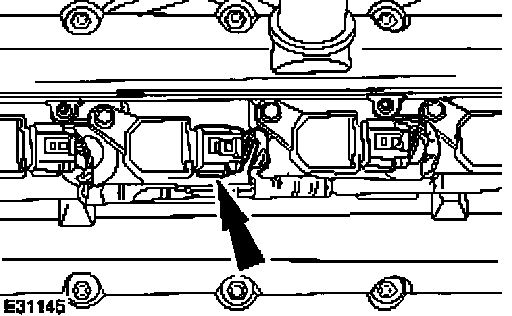

Disconnect the
ignition coil-on-plug electrical connector.
4.

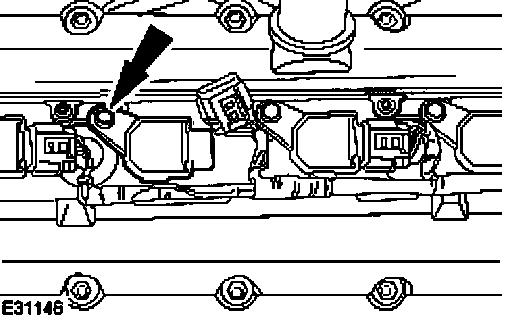

Remove the
ignition coil-on-plug.
Installation 1.
To install, reverse the removal procedure.
2.
Tighten to
5 Nm.
