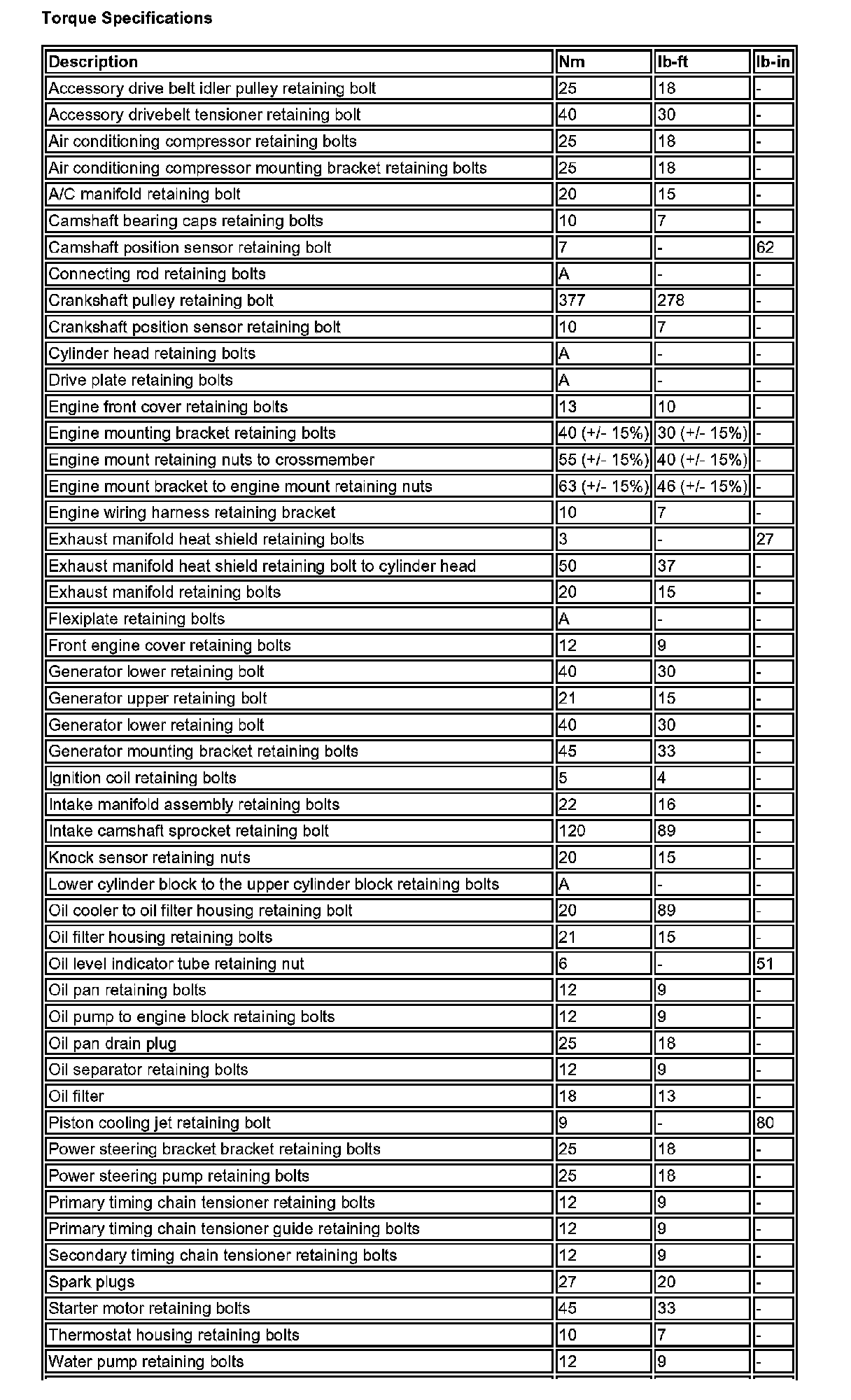

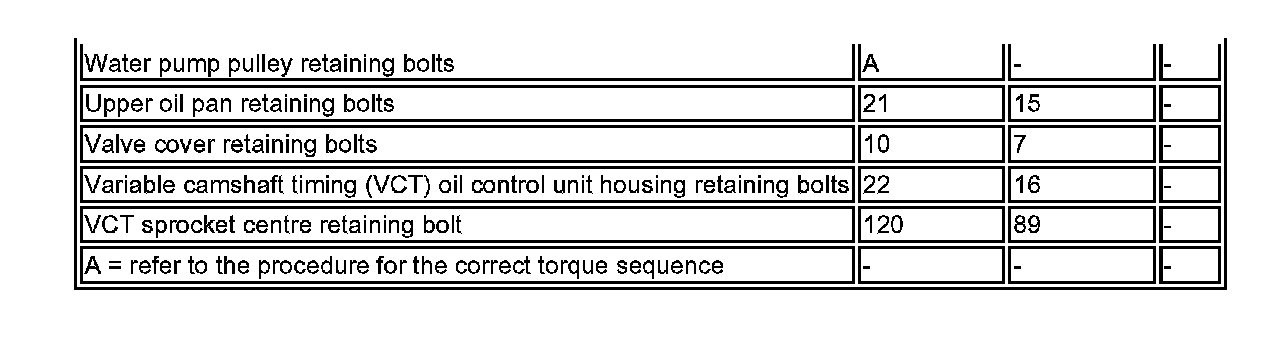

Torque Specifications

Torque Specifications

Cylinder Head
Tighten bolts 1 to 10 20 Nm
Tighten bolts 1 to 10 35 Nm
Tighten bolts 1 to 10 90°
Tighten bolts 1 to 10 90°
Tighten bolts 11 to 12 25 Nm

Intake Manifold
Tighten 22 Nm

Camshaft Bearing Cap
Tighten 10 Nm

Connecting Rod Cap
Tighten 10 Nm
Tighten 30 Nm
Tighten 90°

Flexplate

Step 1:
Tighten the retaining bolts working diagonally 15 Nm

Step 2:
Tighten the retaining bolts working diagonally 110 Nm
