System Specifications

Specifications

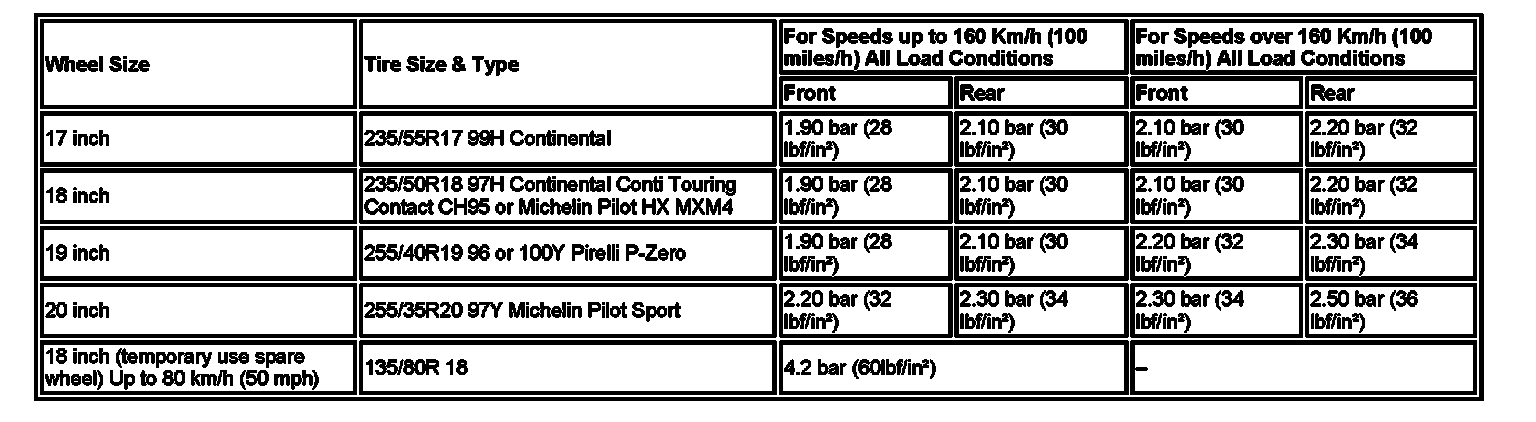

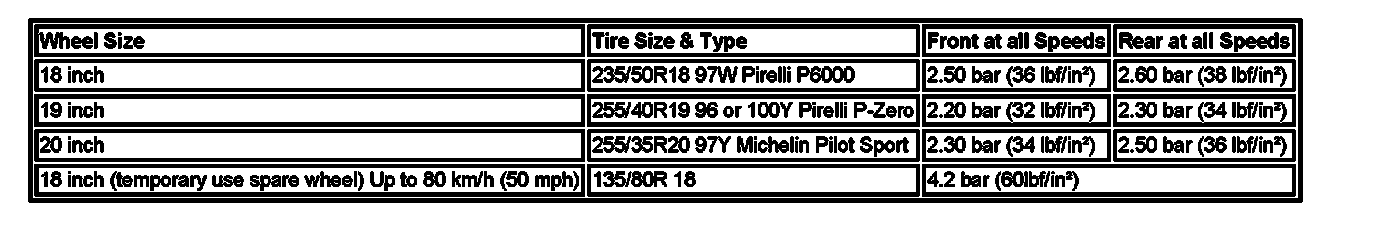

US/Canada Tire Pressure

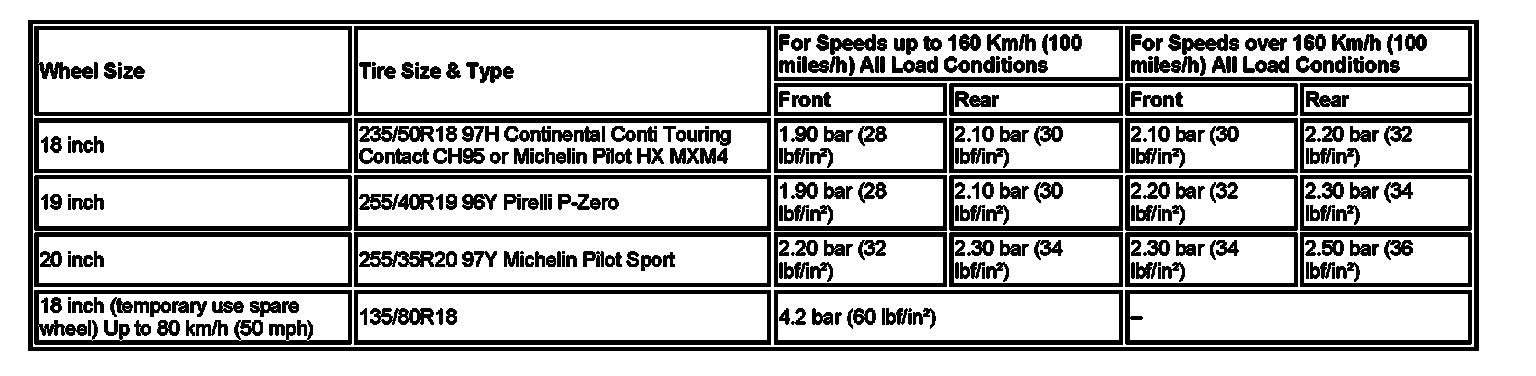

Out-Side North America (OSNA) Tire Pressures





NOTE:
Not including other markets

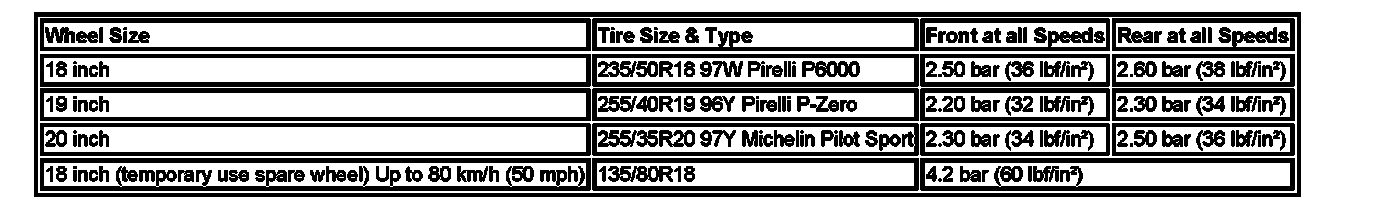

Other Markets Tire Pressures





NOTE:
Other markets includes; Russia,Estonia, Argentina, Brazil, Chile,Dominican, Republic, Morroco, Philippines and Sri Lankas.

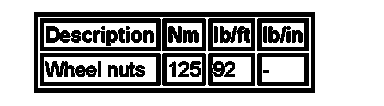

Torque Specifications

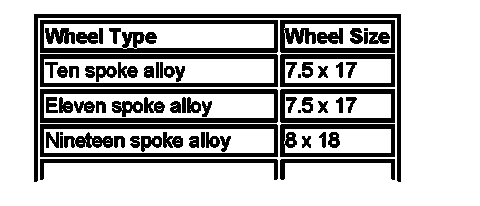

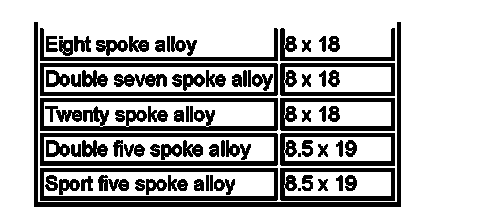

Wheel Specification

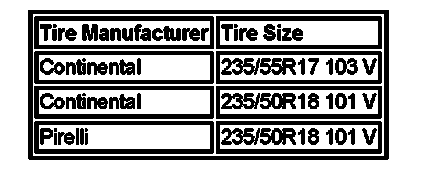

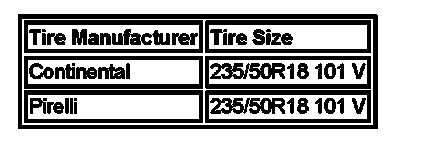

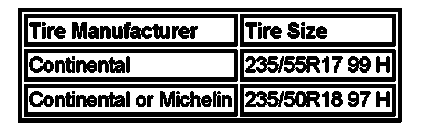

Tire Specification (Winter)

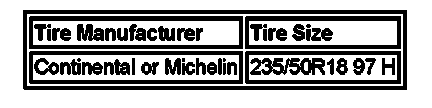

Tire Specification (all seasons)

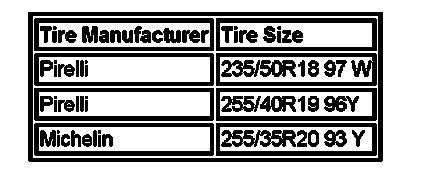

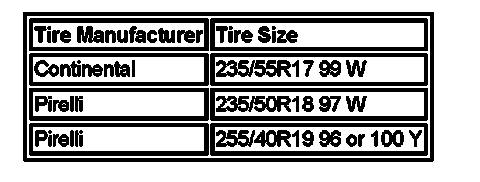

Tire Specifications (summer)





Specifications

US/Canada Tire Pressures





Out-Side North America (OSNA) Tire Pressures





NOTE:
Other markets includes; Russia,Estonia, Argentina, Brazil, Chile,Dominican, Republic, Morroco, Philippines and Sri Lankas.

All Other Markets Tire Pressures

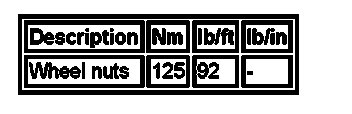

Torque Specifications

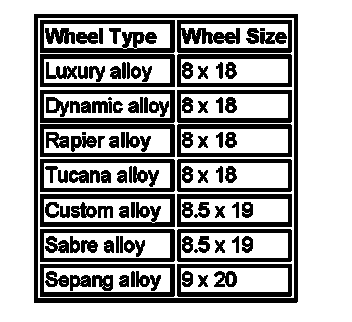

Wheel Specification





Tire Specification (winter)





Tire Specification (all seasons)





Tire Specification (summer)
