Procedures
Front Door Window Regulator and MotorRemoval 1.
Remove the front door window glass.
2.

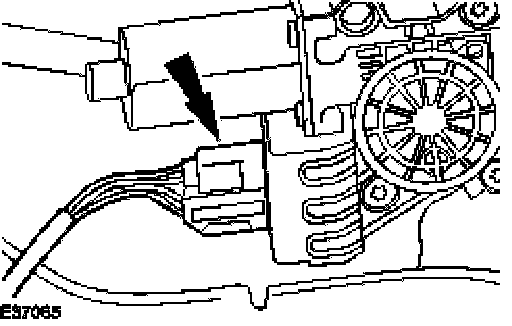

Disconnect the electrical connector.
3.

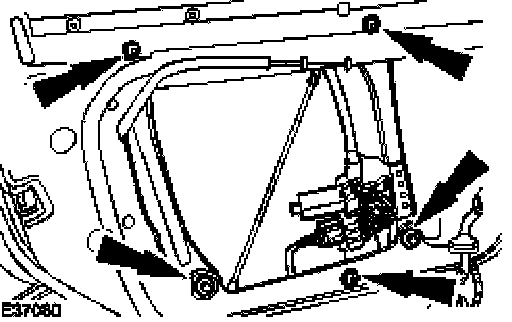

Remove the front door window regulator and motor.
Installation 1.
To install, reverse the removal procedure.
-
Tighten to
7 Nm.
