Rear Window Blind

76.14.04

Rear Window Blind

Removal
1. Lower the rear window blind to the rest position.

CAUTION: Lower the rear window blind to the rest position. Failure to carry out this procedure may result in damage to the vehicle.

2. Remove the parcel shelf.

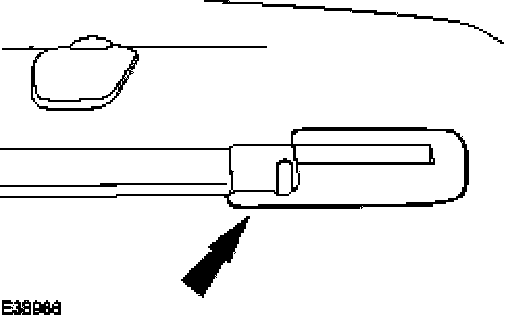

3. Remove the rear window blind guide trim.

CAUTION:
- Do not extend the rear window blind more than 10 mm away from the rear window blind guide trim. Failure to follow this instruction may result in damage to the component.
- Do not extend the center of the rear window blind away from the parcel shelf. Failure to follow this instruction may result in damage to the component.

NOTE: Left-hand shown, right-hand similar.

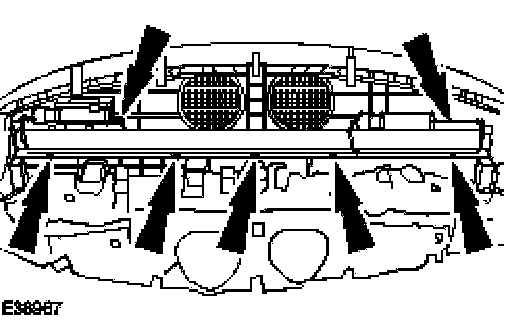

4. Remove the rear window blind.

NOTE: Locally remove the insulation on the back of the parcel shelf to gain access to the rear window blind retaining screws.

Installation
1. To install, reverse the removal procedure.
