Alarm Module: Service and Repair



Rear Intrusion Sensor

Removal
1. Remove the rear seat armrest.

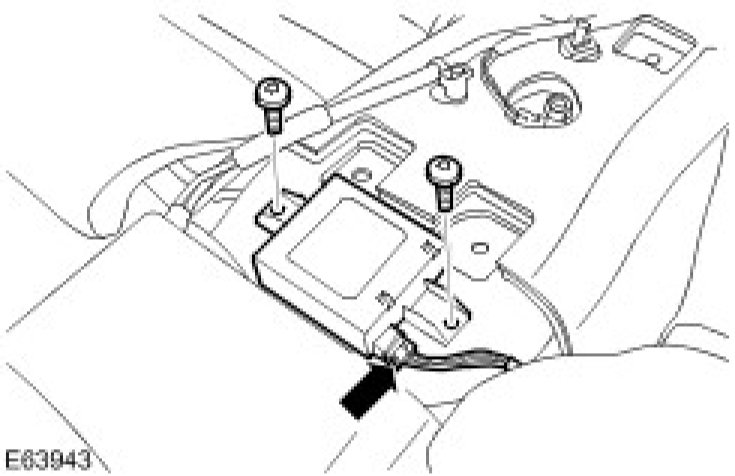

2. Remove the rear intrusion sensor.
- Disconnect the electrical connector.
- Remove the 2 Torx bolts.







Installation
1. Install the rear intrusion sensor.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).
- Connect the electrical connector.
2. Install the rear seat armrest.
