Module Controlled Functions

Module Controlled Functions

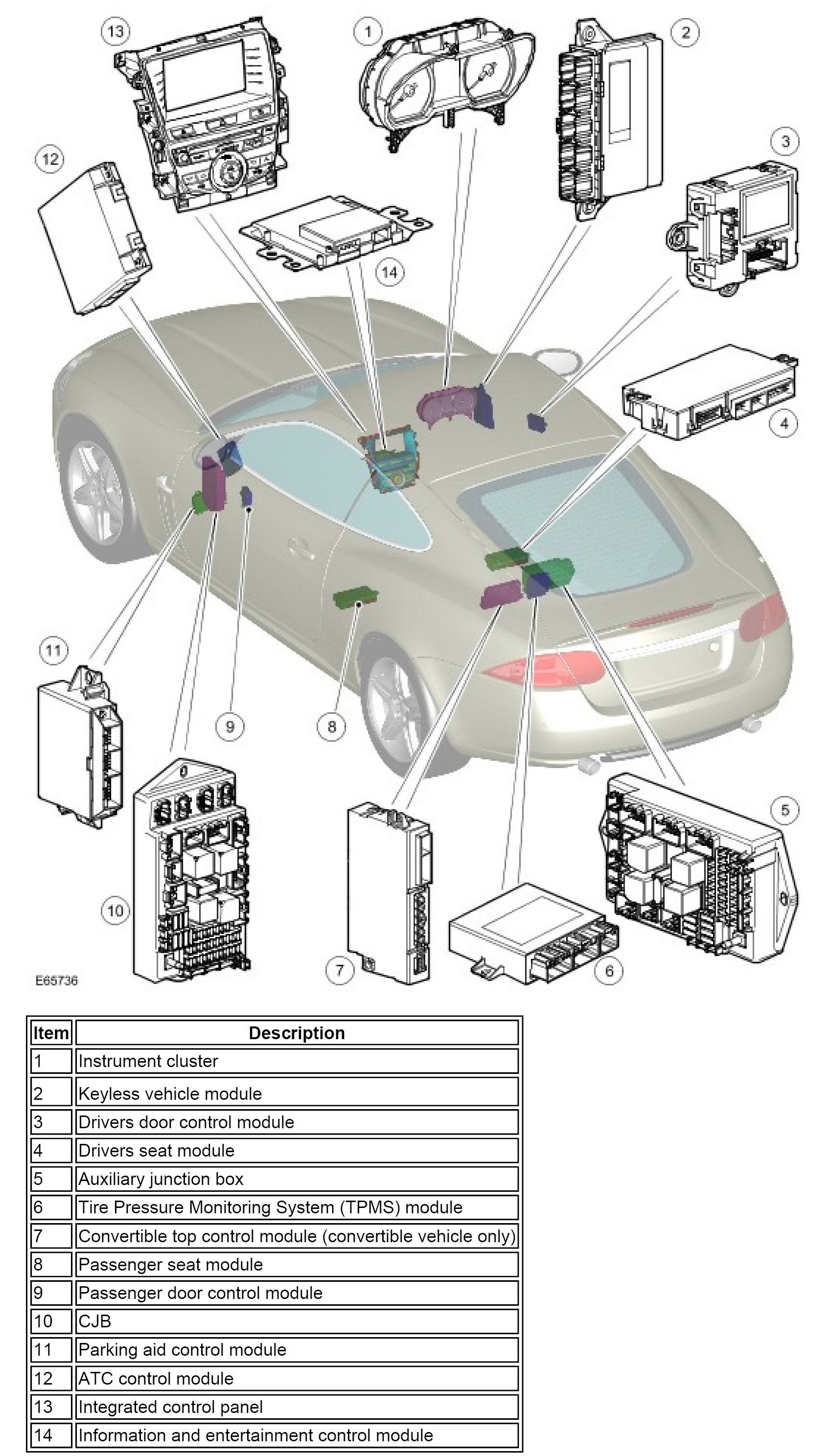

COMPONENT LOCATION-MOST/LIN

Module Controlled Functions:

COMPONENT LOCATION-MEDIUM SPEED CAN

Module Controlled Functions:

COMPONENT LOCATION-HIGH SPEED CAN

Module Controlled Functions:

INTRODUCTION
The vehicle electrical system consists of a number of control modules connected via two multiplexed CAN busses. The Instrument cluster acts as a gateway between the two CAN bus systems.

Lower speed control modules use a Local Interconnect (LIN) Bus. Control modules on the LIN bus are generally configured to be master/slave i.e. one module controls other module(s).

The vehicle entertainment system uses a fibre optic bus system which uses the MOST protocol for transmission of data and audio to the relevant components of the audio system.
