Front Fender Liner: Service and Repair



Fender Splash Shield (76.10.90)

Removal

1. Disconnect the battery ground cable.

2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

3. Remove the LH front wheel and tire.

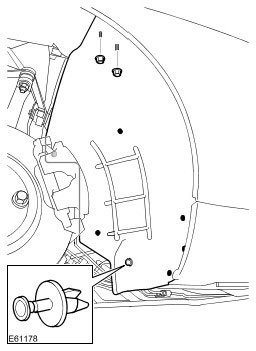

4. Remove the fender splash shield, rear section.
- Remove the 6 Torx bolts.
- Remove the clip.
- Remove the 2 nuts.







5. Remove the fender splash shield, front section.
- Remove the 13 Torx bolts.







Installation

1. Install the fender splash shield, front section.
- Tighten the Torx bolts.

2. Install the fender splash shield, rear section.
- Tighten the Torx bolts.
- Tighten the nuts.
- Install the clip.

3. Install the wheel and tire.
4. Connect the battery ground cable.
