Rear Subframe Front Bushing



Rear Subframe Front Bushing (64.25.34)

Special Service Tools






















Removal

1. Remove the cover and disconnect the battery ground cable.

2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

3. Remove the rear subframe assembly.

4. NOTE: Note the fitted position.

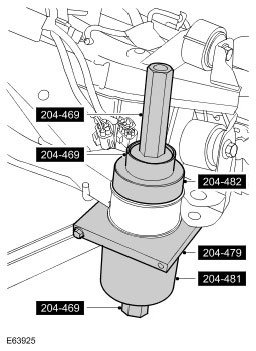

Using the special tools, remove and discard the rear subframe front bushing.







Installation

1. NOTE: Align to the position noted on removal.

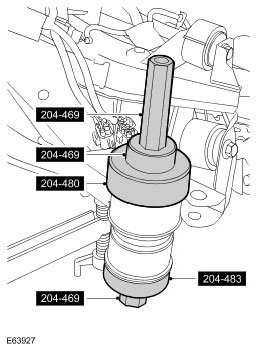

Using the special tools, Install the new front bushings.







2. Install the rear subframe.
3. Connect the battery ground cable and install the cover.
