Roll Bar: Service and Repair



Roll Over Protection Unit

Removal
1. Remove the cover and disconnect the battery ground cable.
2. Make the SRS system safe.
3. Remove the rear seat backrest.

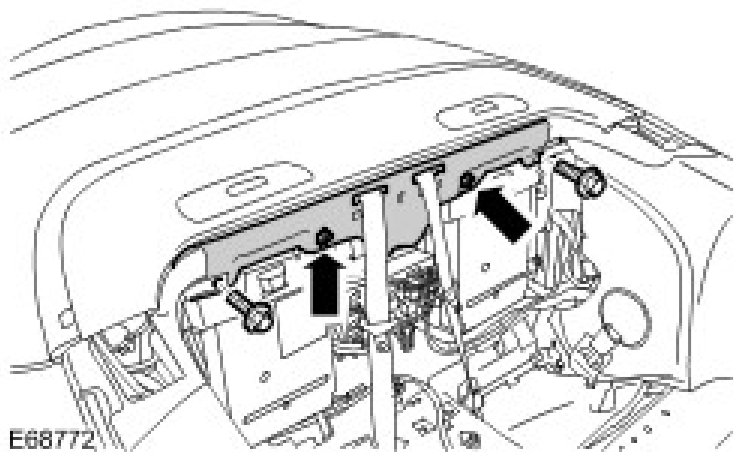

4. Release the rear seat backrest trim panel.
- Remove the 2 clips.
- Remove the 2 bolts.
- Position the rear seat backrest trim panel aside.

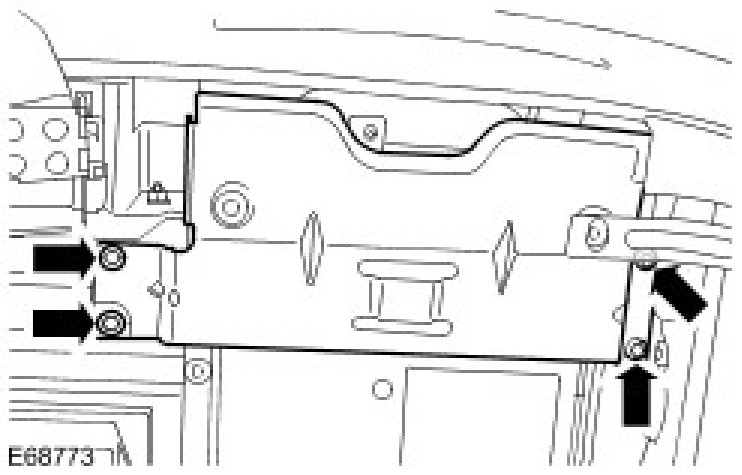

5. Remove the rear seat backrest retaining bracket.
- Remove the 2 nuts and 2 bolts.







6. Remove the roll over protection unit.
- Disconnect the electrical connector.
- Remove the 4 Torx bolts.







Installation
1. Install the roll over protection unit.
- Tighten the Torx bolts to 25 Nm (18 lb.ft).
- Connect the electrical connector.
2. Install the rear seat backrest retaining bracket.
- Tighten the nuts and bolts to 10 Nm (7 lb.ft).
3. Install the rear seat backrest trim panel.
- Tighten the bolts to 10 Nm (7 lb.ft).
- Install the clips.
4. Install the rear seat backrest.
5. Connect the battery ground cable and install the cover.
6. Connect WDS to the vehicle and configure a new module.
