Brake Switch (Cruise Control): Service and Repair



Speed Control Deactivator Switch (19.75.20)

Removal

NOTE: This component also functions as the brake pedal switch.

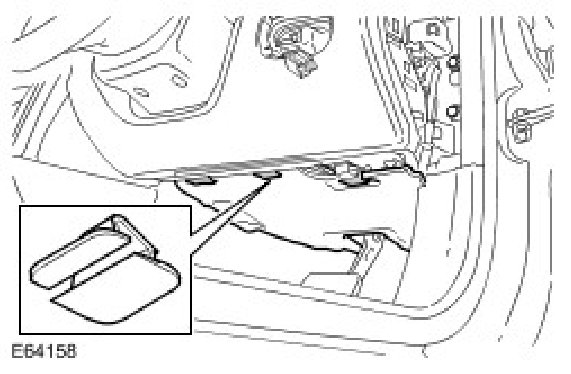

1. Remove the driver's side footwell trim panel.
- Carefully release the 3 clips.

CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.

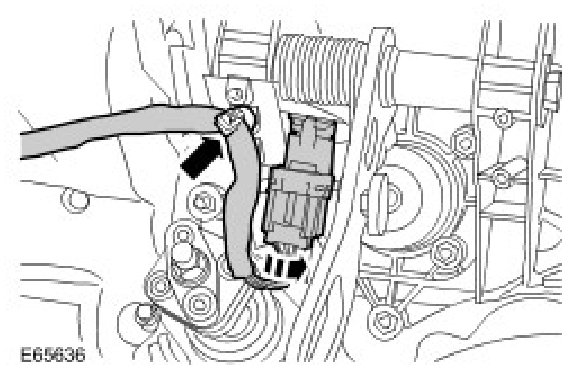

2. Release the brake switch.
- Rotate clockwise approximately 30 degrees.
- Carefully release the clip.
- Disconnect the electrical connector.







Installation
1. Install the brake switch.
- Connect the electrical connector.
- Secure the clip.
2. Install the driver's side footwell trim panel.
- Carefully align and secure the clips.
