Ambient Temperature Sensor / Switch HVAC: Service and Repair



Ambient Air Temperature Sensor (82.20.02)

Removal

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

1. Raise and support the vehicle.
2. Remove the radiator splash shield.

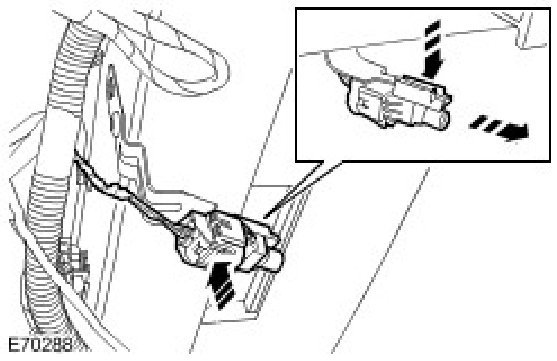

3. Remove the ambient air temperature sensor.
- Disconnect the electrical connector.
- Carefully release the clip.







Installation
1. Install the ambient air temperature sensor.
- Secure the clip.
- Connect the electrical connector.
2. Install the radiator splash shield.
