Blower Motor: Service and Repair

Blower Motor (82.25.66)

Removal

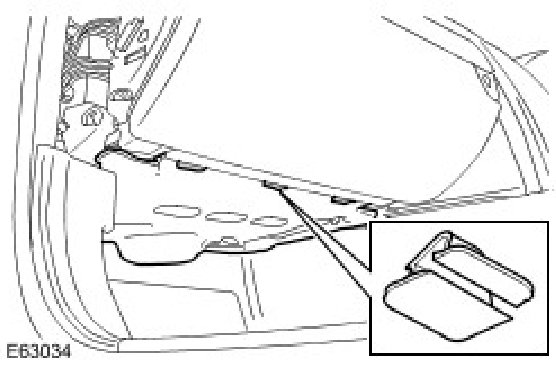

1. Remove the passenger side footwell trim panel.
- Remove the 3 clips.

CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.

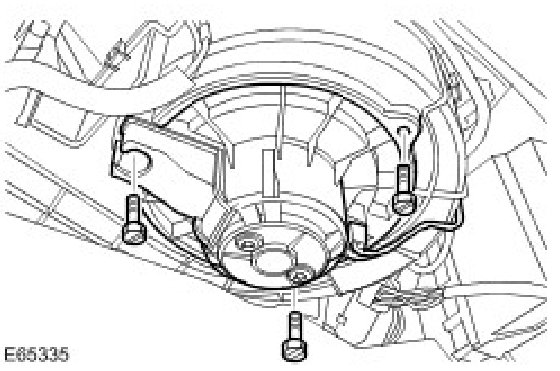

2. Remove the blower motor.
- Disconnect the electrical connector.
- Remove the 3 screws.

Installation
1. Install the blower motor.
2. Install the passenger side footwell trim panel.
- Carefully secure the clips.
