Cabin Temperature Sensor / Switch: Service and Repair

In-Vehicle Temperature Sensor (82.20.03)

Removal
1. Remove the instrument panel, lower trim panel.

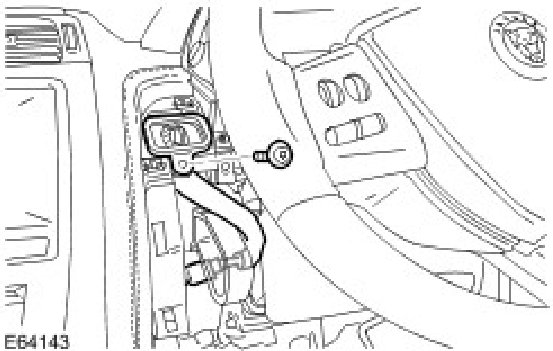

2. Remove the in-vehicle temperature sensor.
- Remove the Torx screw.
- Disconnect the electrical connector.

Installation
1. Install the in-vehicle temperature sensor.
- Position the electrical harness.
- Connect and secure the electrical connector.
- Install the Torx screw.
2. Install the instrument panel, lower trim panel.
