Headlamp Leveling Front Sensor



Headlamp Leveling Front Sensor

Removal
1. Raise and support the vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove the LH front wheel and tire.

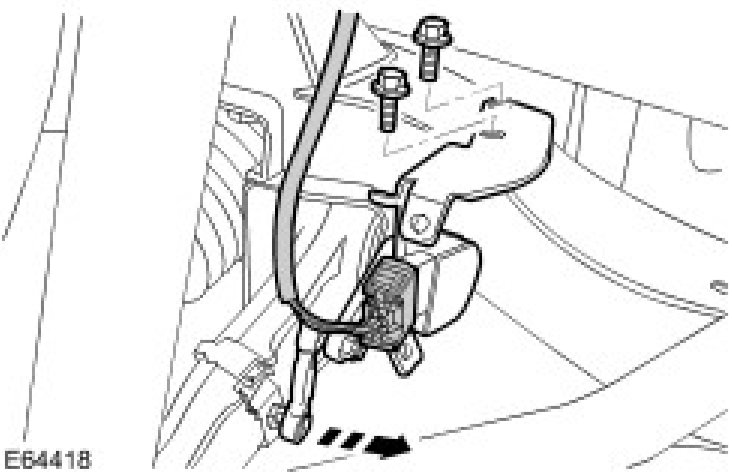

3. Remove the headlamp levelling sensor.
- Disconnect the height sensor link.
- Disconnect the electrical connector.
- Remove the 2 bolts.







4. Remove the height sensor link.

NOTE: Do not disassemble further if the component is removed for access only.

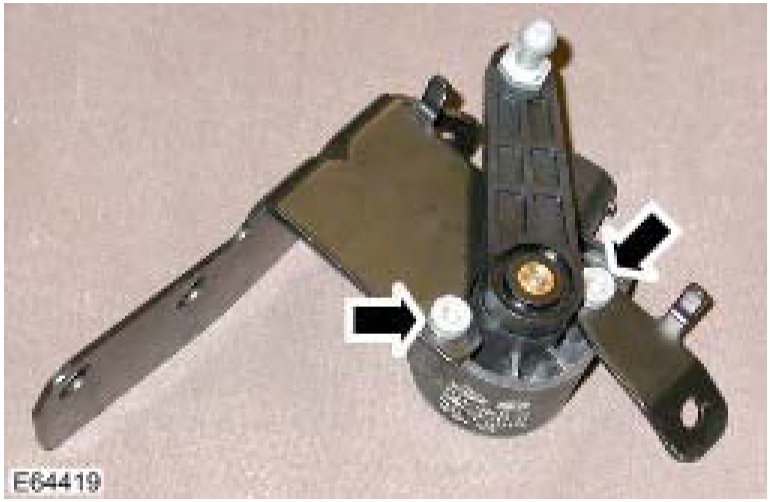

5. Remove the bracket.
- Remove the 2 Allen bolts.

NOTE: Note the fitted position.







Installation
1. Install the bracket.
- Tighten the Allen bolts to 5 Nm (4 lb.ft).

NOTE: Align to the position noted on removal.

2. Install the height sensor link.
3. Install the headlamp levelling sensor.
- Tighten the bolts to 25 Nm (18 lb.ft).
- Connect and secure the electrical connector.
- Connect the height sensor link.
4. Install the wheel and tire.
