Crankshaft Position Sensor: Service and Repair



Crankshaft Position (CKP) Sensor (18.30.12)

Removal
1. Remove the cover and disconnect the battery ground cable.
2. Raise and support the vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

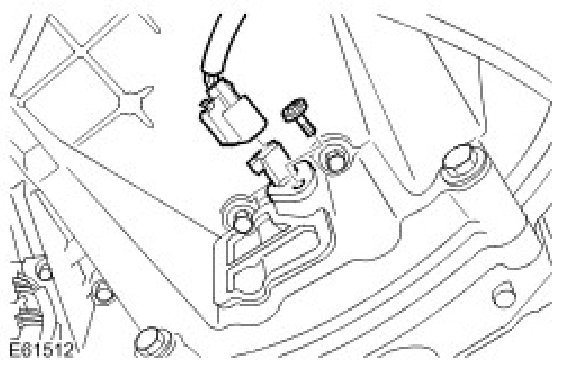

3. Remove the crankshaft position (CKP) sensor.
- Disconnect the electrical connector.
- Remove the Torx screw.

NOTE: Clean the components general area prior to dismantling.







Installation
1. Install the CKP sensor.
- Clean the component mating faces.
- Tighten the Torx screw to 8 Nm (6 lb.ft).
- Connect the electrical connector.
2. Connect the battery ground cable and install the cover.
