Fuel Level Sensor: Service and Repair
Fuel Level SenderRemoval 1.
Remove the cover and disconnect the battery ground cable.
2.
Remove the fuel pump module.
3.

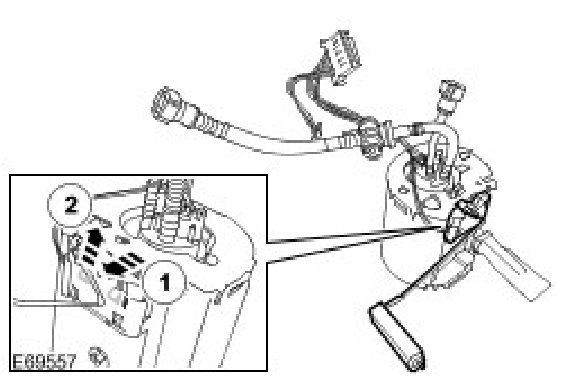

Remove the fuel level sender unit.
-
Carefully release the 2 clips.
Installation 1.
Install the fuel level sender unit.
2.
Install the fuel pump module.
3.
Connect the battery ground cable and install the cover.
