Computers/Controls - False Diagnostic Trouble Codes

NUMBER: XK419-002

MODEL: 2007 XK

DATE: April 06, 2006

SECTION: 419-10

Falsely Flagged Diagnostic Trouble Codes

AFFECTED VEHICLE RANGE:

New XK VIN: B00001 onwards
Model Year: 2007

CONDITION SUMMARY:

FALSELY FLAGGED DIAGNOSTIC TROUBLE CODES (DTC)

This bulletin has been issued to inform the dealers of a number of DTC that can be falsely flagged.

Situation:

This bulletin identifies a number of DTC's that may be cleared and ignored. The Integrated Diagnostic System (IDS) "help text" may provide alternative actions for some codes.

Action:

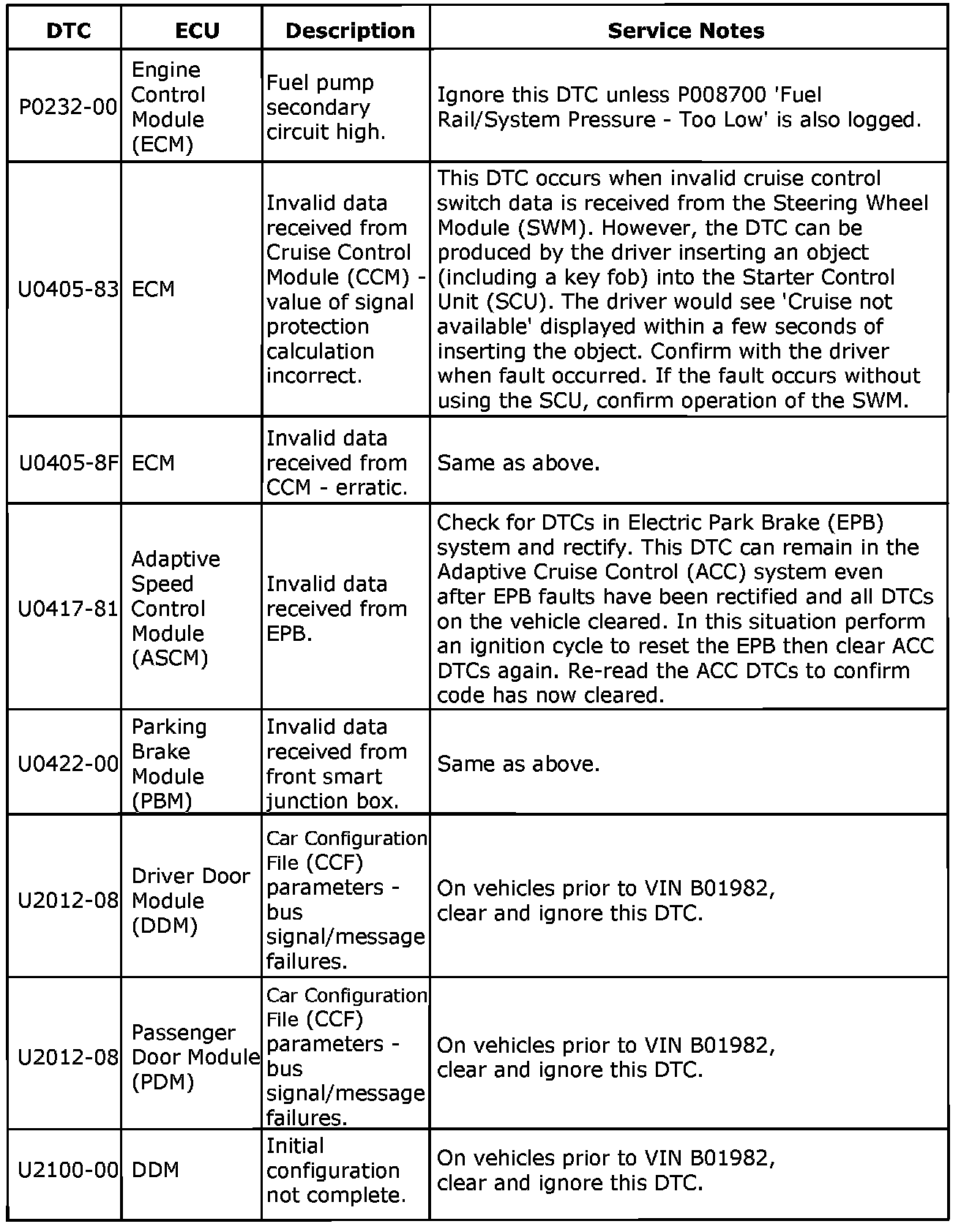

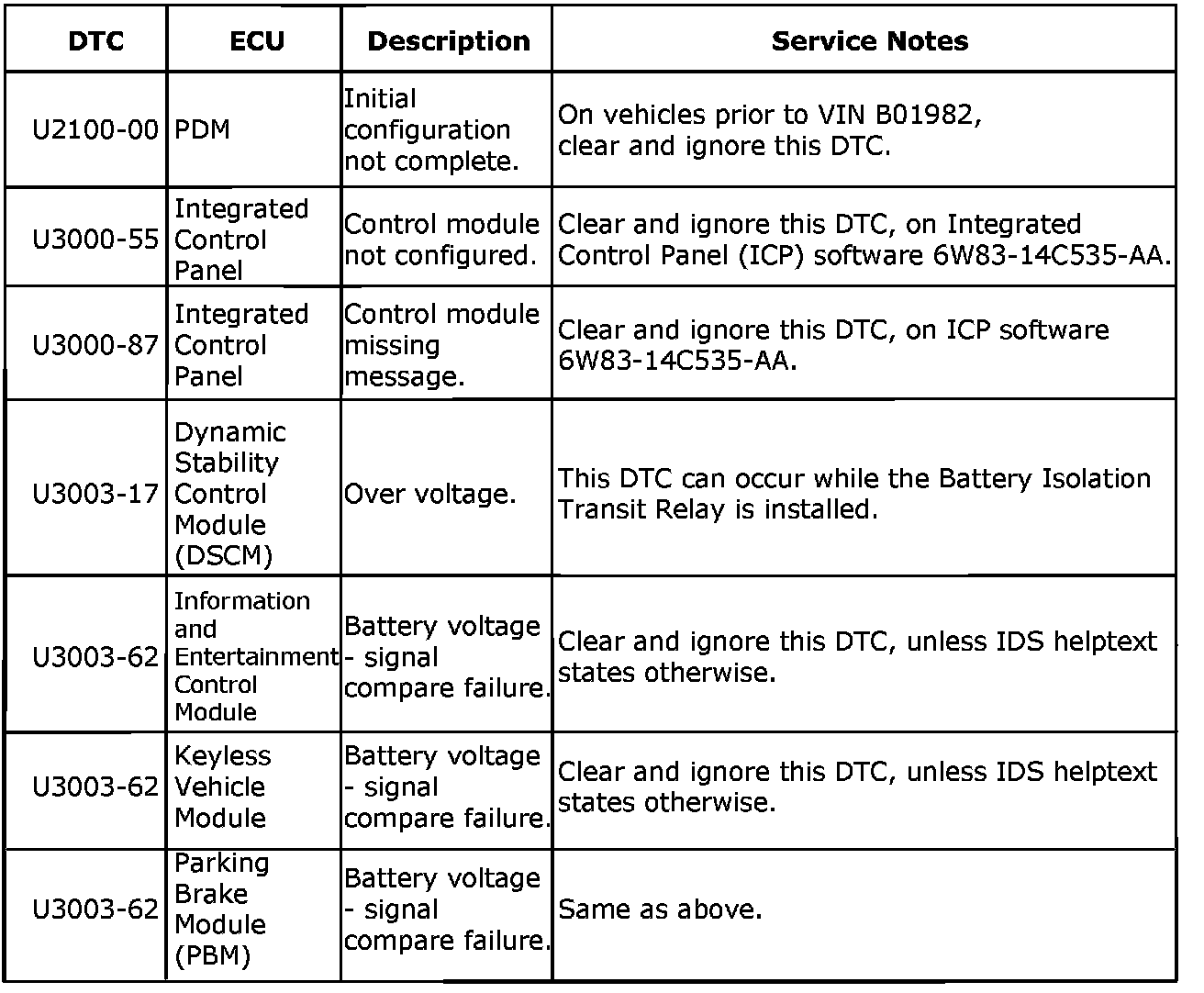

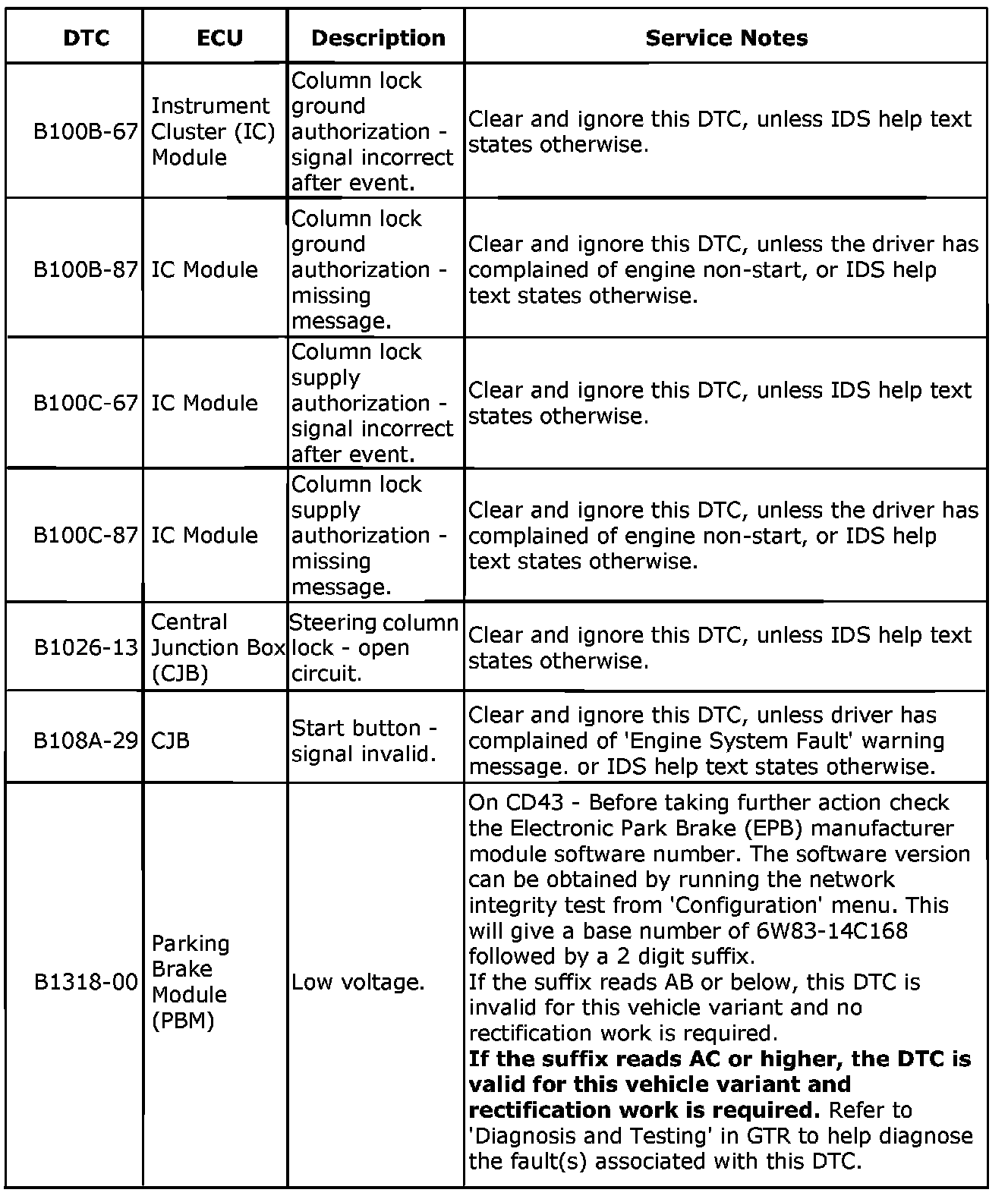

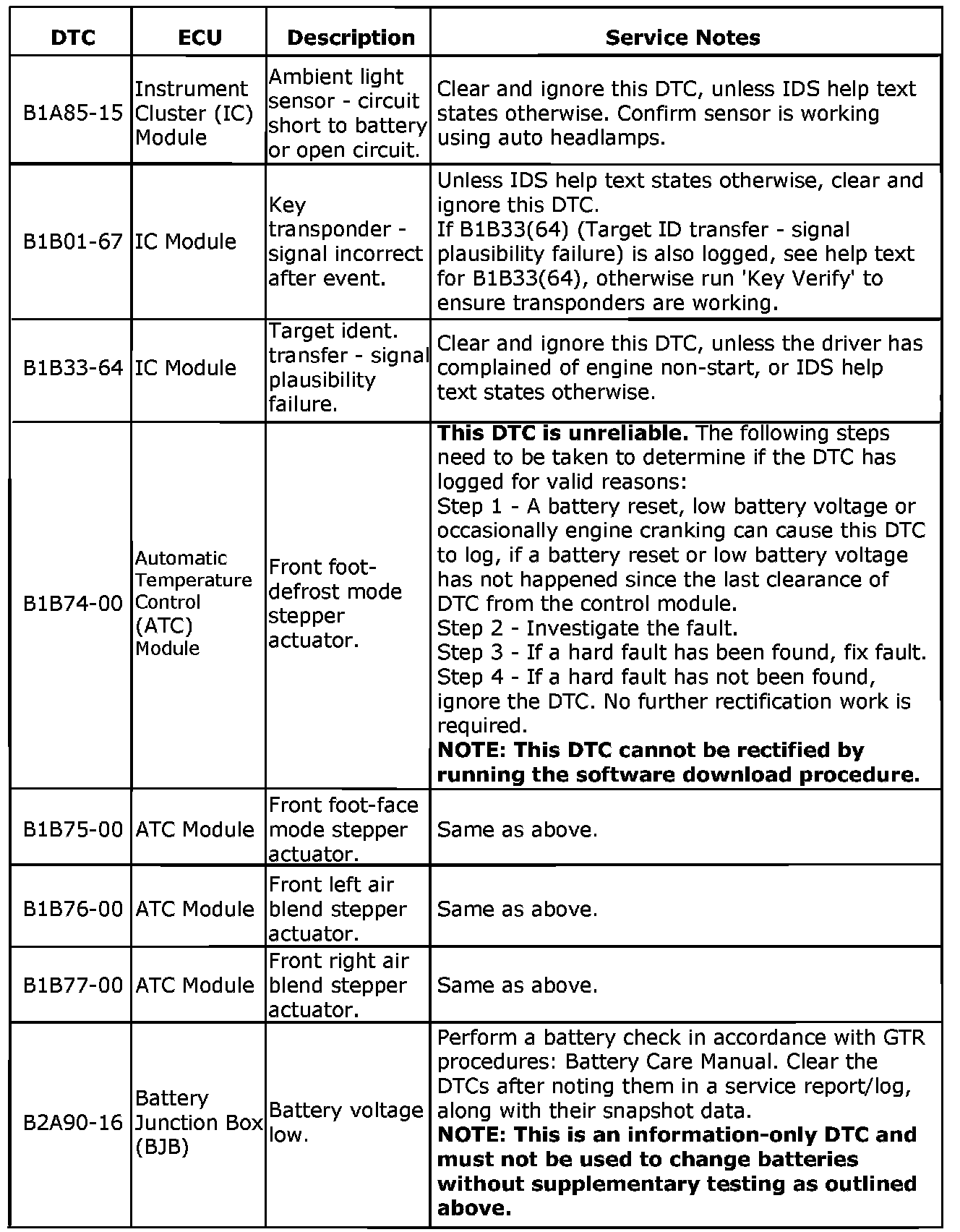

Refer to the appended table of codes associated with various vehicle modules that under most circumstances can be ignored or simply explained by the "Service Notes" information.

PARTS:

No parts required. Information purposes only.

WARRANTY:

Normal warranty policy and procedures apply.

REPAIR PROCEDURE














IDENTIFY AND CLEAR DIAGNOSTIC TROUBLE CODES





Disclaimer
