Fuel Temperature Sensor: Service and Repair



Fuel Temperature Sensor (18.30.99)

Removal
1. Remove the cover and disconnect the battery ground cable.
2. Remove the intake air resonator.

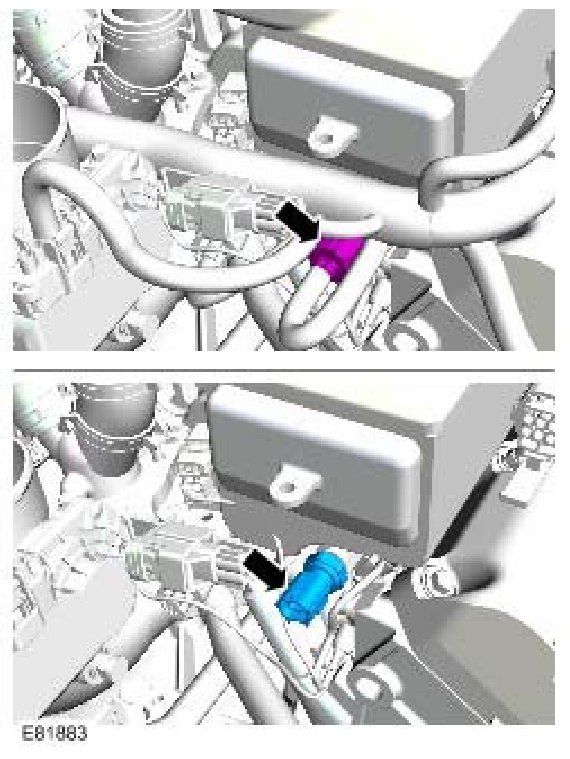

3. Remove the fuel temperature sensor.
- Disconnect the electrical connector.

WARNING: The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.







Installation
1. Install the fuel temperature sensor.
- Clean the component mating faces.
- Apply sealant to the sensor thread.
- Tighten the sensor to 7 Nm (5 lb.ft).
- Connect the electrical connector.
2. Install the intake air resonator.
3. Connect the battery ground cable and install the cover.
