Ignition Coil: Service and Repair



Ignition Coil-On-Plug - Vehicles With: Supercharger (18.20.40)

Removal
1. Remove the engine cover.
2. Remove the intake air resonator.

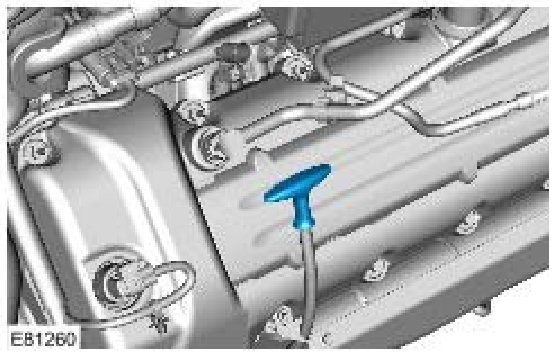

3. Remove the oil level indicator.

NOTE: Left hand engine bank only.

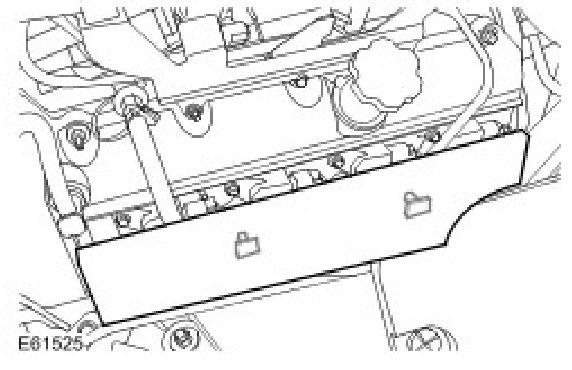

4. Remove the ignition coil cover.
- Release from the 2 clips.

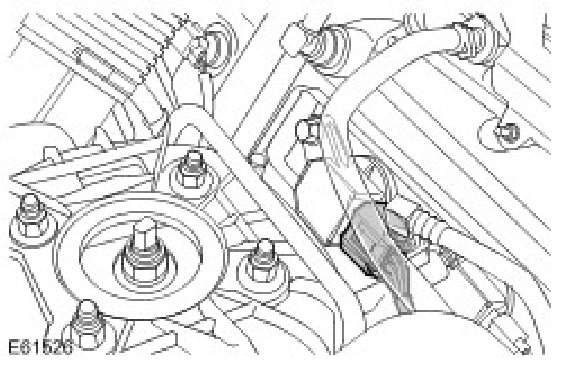

5. Disconnect the ignition coil-on-plug electrical connector.

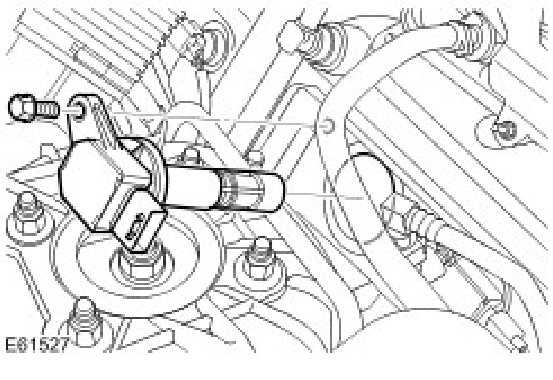

6. Remove the ignition coil-on-plug.
- Remove the bolt.







Installation
1. Install the ignition coil-on-plug.
- Tighten the bolt to 6 Nm (4 lb.ft).
- Connect the electrical connector.
2. Install the ignition coil-on-plug cover.
- Position and secure the clips.
3. Install the oil level indicator.

NOTE: Left hand engine bank only.

4. Install the intake air resonator.
5. Install the engine cover.
