Spark Plug: Service and Repair



Spark Plugs - Vehicles With: Supercharger (18.20.02)

Removal
1. Remove the ignition coil-on-plugs.
2. Remove the remaining ignition coil-on-plugs.
3. Clean the area surrounding the spark plugs.

WARNING: Eye protection must be worn.

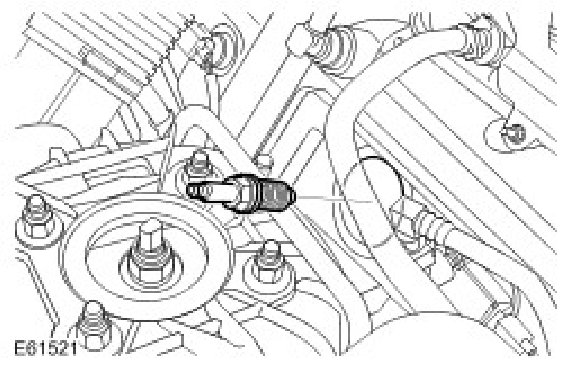

4. Remove the spark plugs.







Installation
1. Install the spark plugs.
- Tighten the spark plugs to 25 Nm (18 lb.ft).
2. Install the remaining coil-on-plugs.
3. Install the ignition coil-on-plug.
