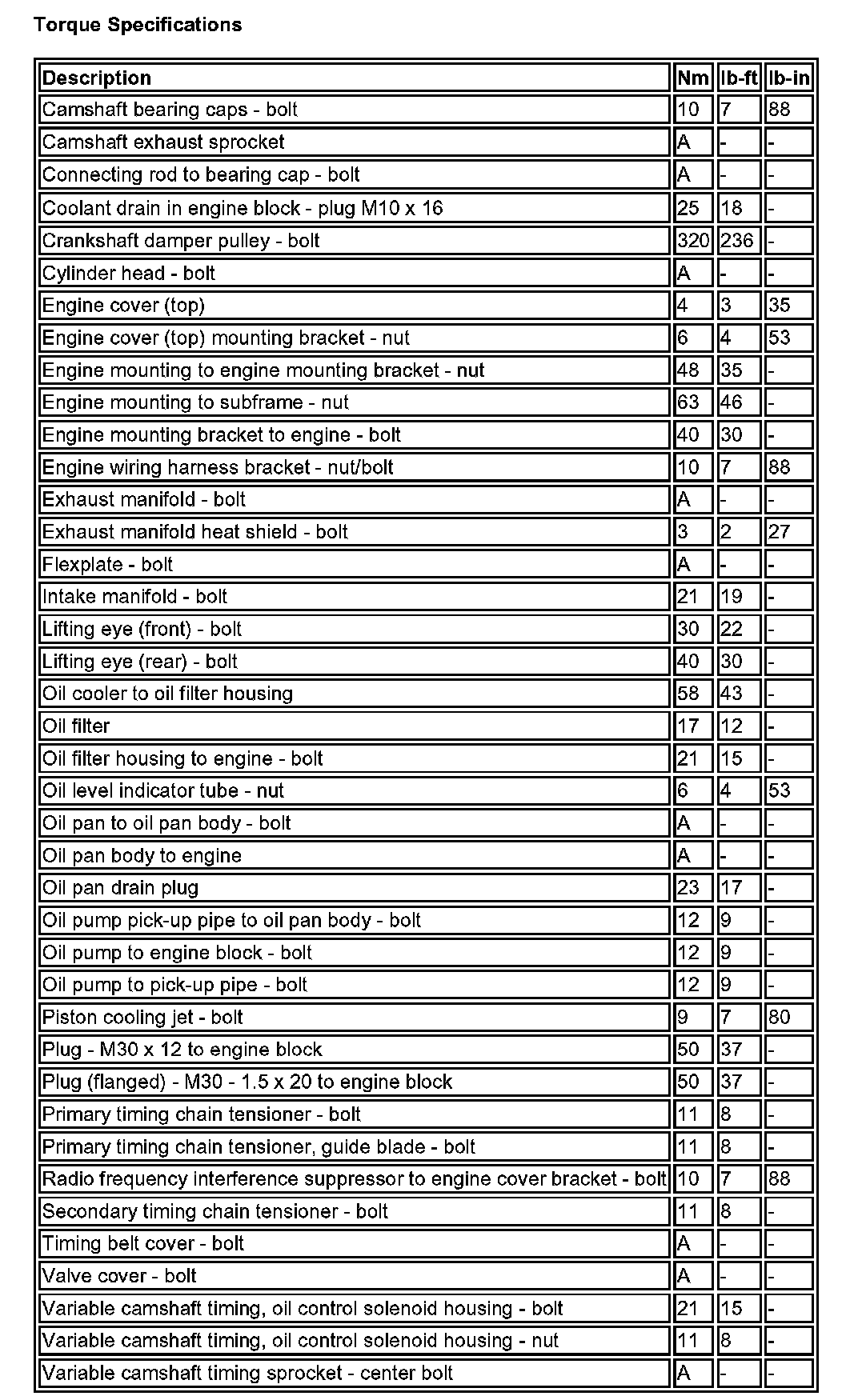

Torque Specifications
Torque SpecificationsCylinder Head Tighten bolts 1 to 10
20 Nm
Tighten bolts 1 to 10
35 Nm
Tighten bolts 1 to 10
+90°
Tighten bolts 1 to 10
+90°
Tighten bolts 11 to 12
25 Nm
Intake Manifold Tighten
22 Nm
Camshaft Bearing Cap Tighten
10 Nm (7 lb-ft, 88 lb-in)
Connecting Rod Cap Tighten
10 Nm
Tighten
30 Nm
Tighten
+90°
Flexplate Tighten
15 Nm
Tighten
110 Nm
