Power Window Switch: Service and Repair

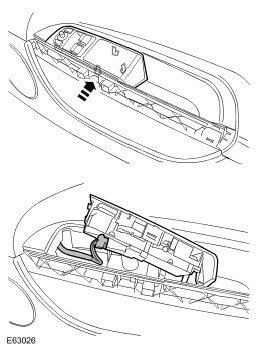

Window Control Switch (86.25.08)Removal 1.
Remove the grab handle cover.
-
Release from the 6 clips.
2.
Remove the window control switch.
-
Release from the 3 clips.
-
Disconnect the electrical connector.
Installation 1.
Install the window control switch.
-
Connect the electrical connector.
-
Secure in the clips.
2.
Install the grab handle cover.
-
Secure in the clips.
