Air Injection Pump: Service and Repair



Secondary Air Injection (AIR) Pump

Removal

1. Raise and support the vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove the radiator splash shield.

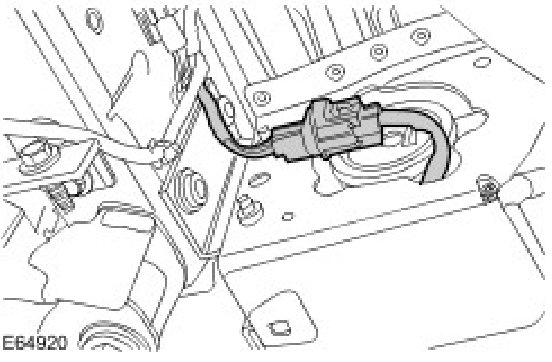

3. Disconnect the AIR pump electrical connector.

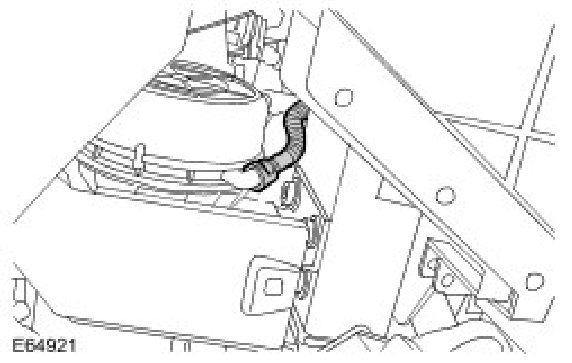

4. Disconnect the AIR pump hose.

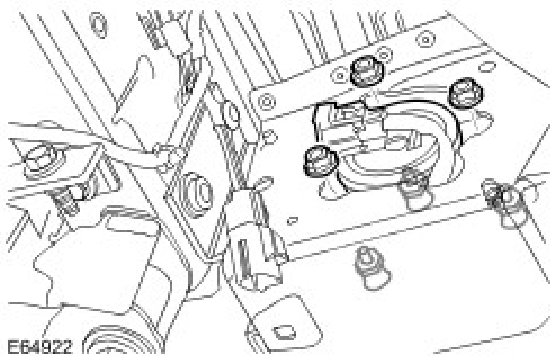

5. Remove the AIR pump.
- Remove the 3 nuts.

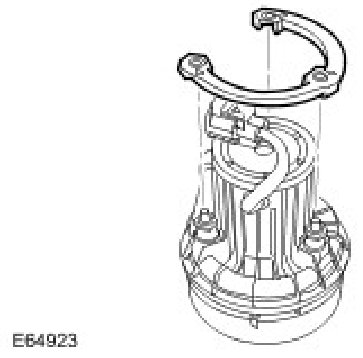

6. Remove the AIR pump bracket.

NOTE: Do not disassemble further if the component is removed for access only.







Installation
1. Install the AIR pump bracket.
2. Install the AIR pump.
- Tighten the nuts to 10 Nm (7 lb.ft).
- Connect the hose.
- Connect the electrical connector.
3. Install the radiator splash shield.
