Headlamp Assembly 86.41.33

Exterior Lighting - Headlamp Assembly 86.41.33

Removal

All vehicles

1. Remove the front bumper cover. Front Bumper Cover

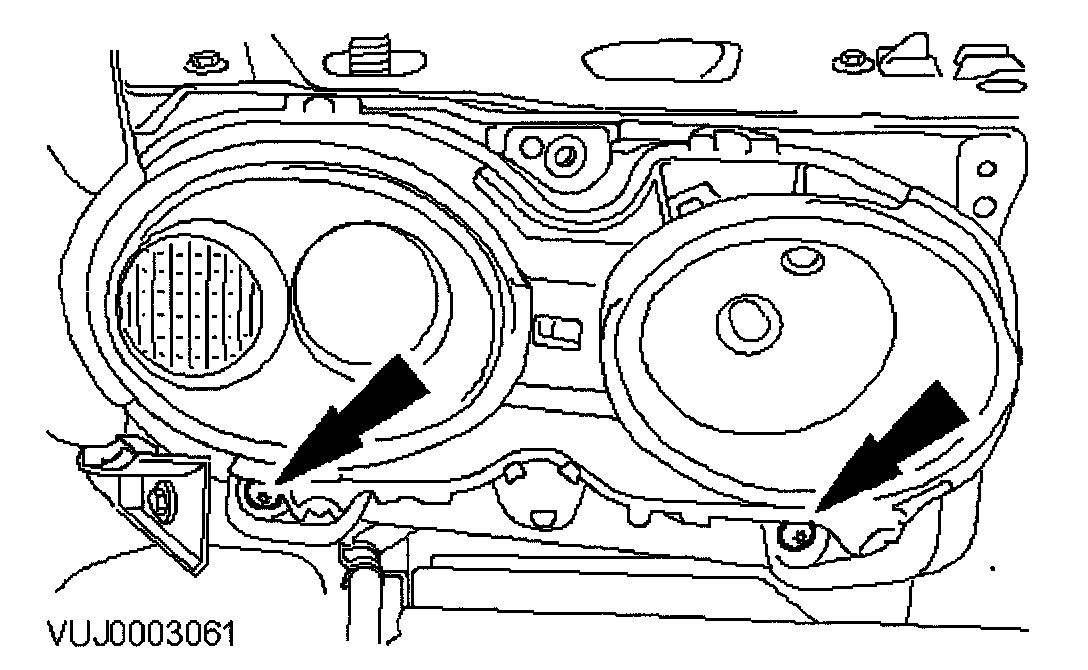

2. Remove the headlamp assembly retaining bolts.

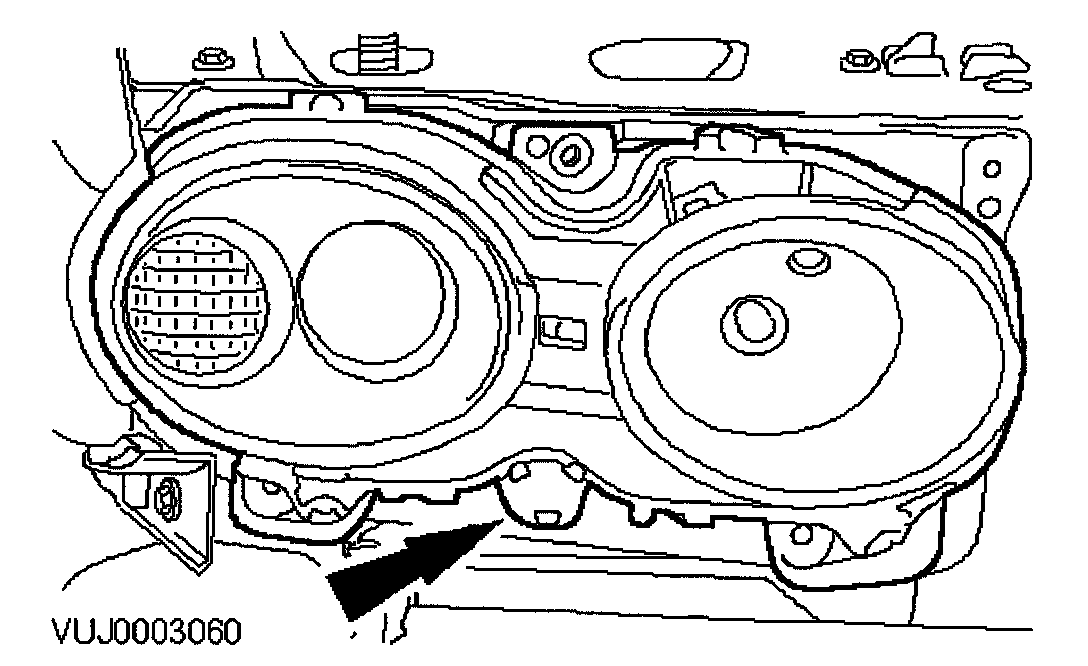

3. Detach the headlamp assembly.

Vehicles with headlamp washers

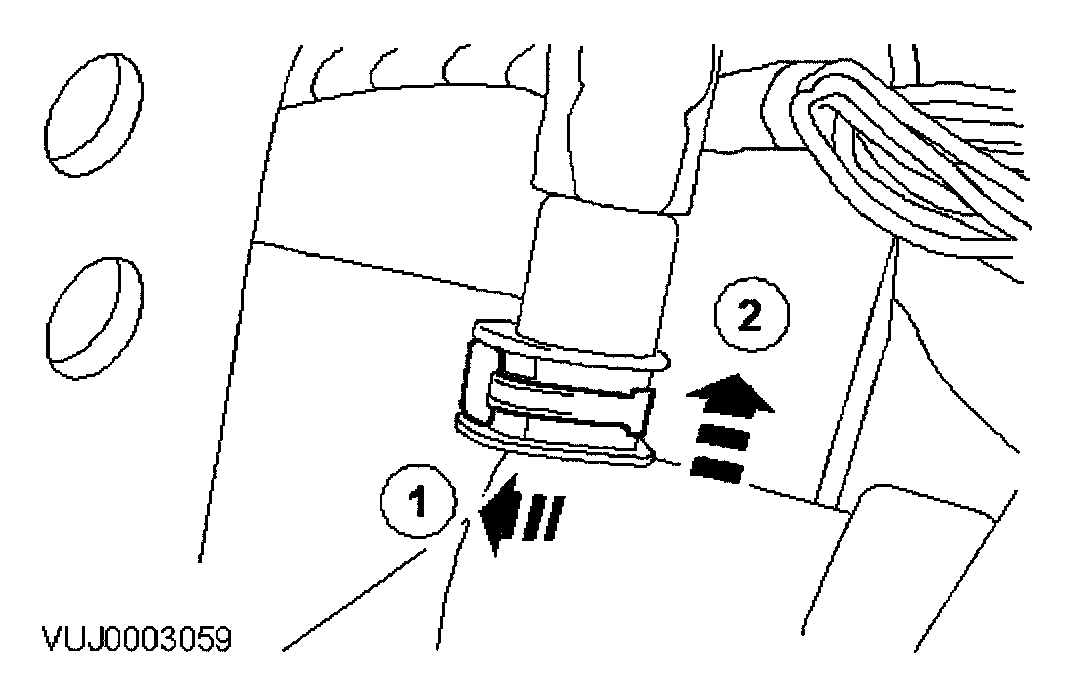

4. Disconnect the headlamp washer hose.
1. Release the headlamp washer hose retaining clip.
2. Disconnect the headlamp washer hose.

All vehicles





5. Remove the headlamp assembly.

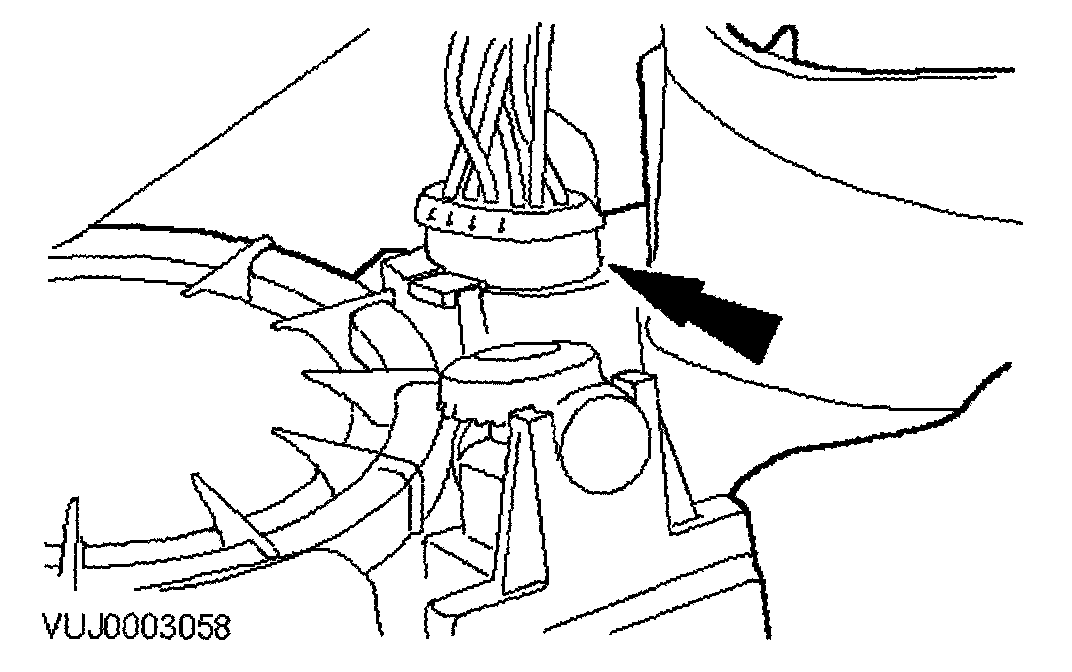

- Disconnect the electrical connector.

Vehicles with headlamp washers

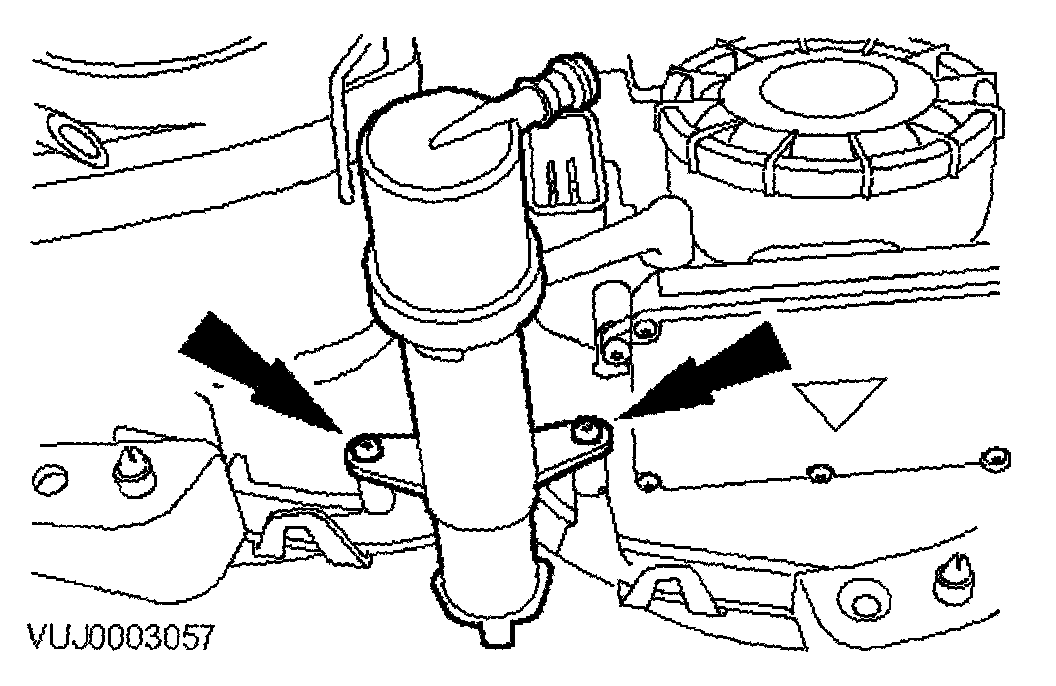

6. Remove the headlamp washer motor.

Installation
1. To install, reverse the removal procedure.
2. Check the headlamp adjustment. Headlamp Adjustment 86.40.18
