Alignment

SPECIFICATIONS

Alignment Specifications (Part 1):

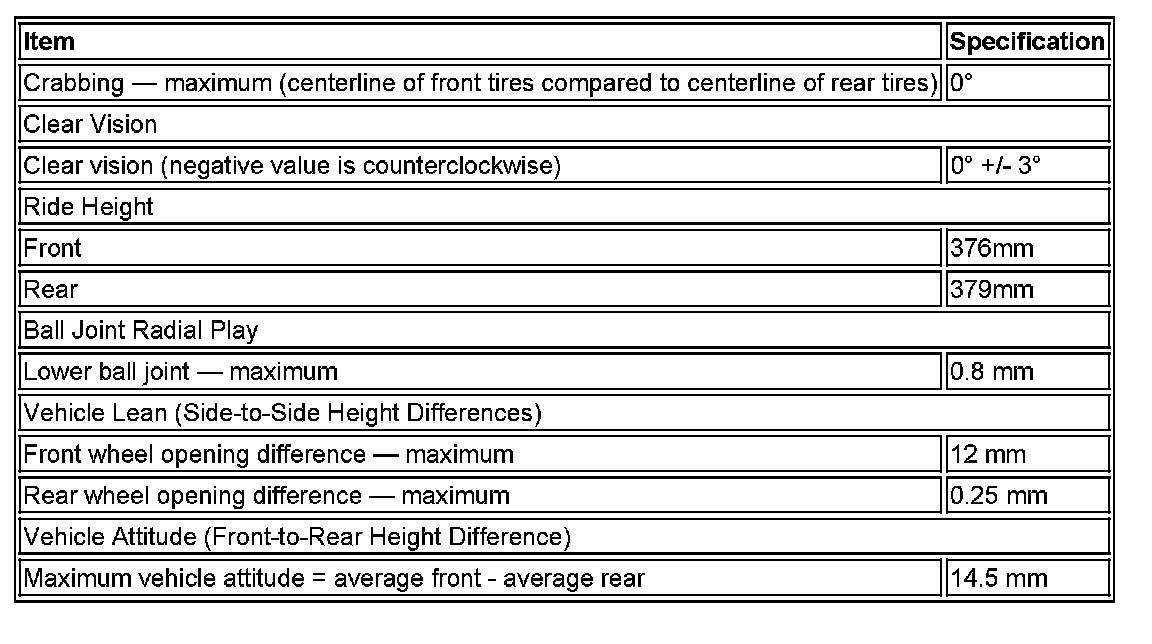

General Specifications

Alignment Specifications (Part 2):

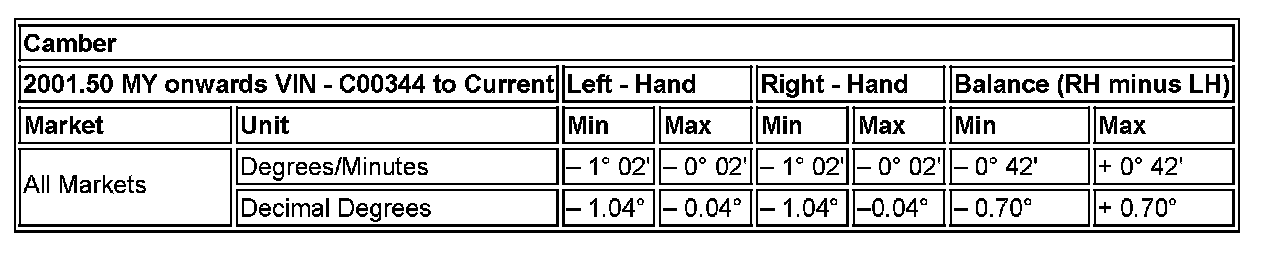

Wheel Alignment - Front Camber

NOTE:
^ All the above figures are with 20 liters of fuel.
^ Tires must be inflated to normal pressure

Alignment Specifications (Part 3):

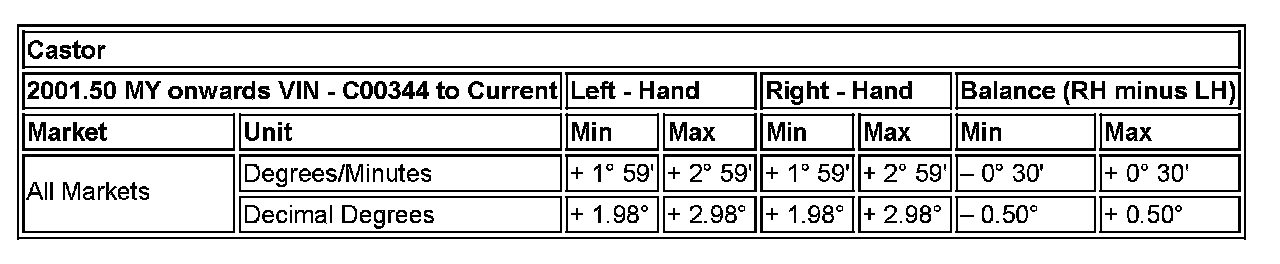

Wheel Alignment - Front Castor

NOTE:
^ All the above figures are with 20 liters of fuel.
^ Tires must be inflated to normal pressure

Alignment Specifications (Part 4):

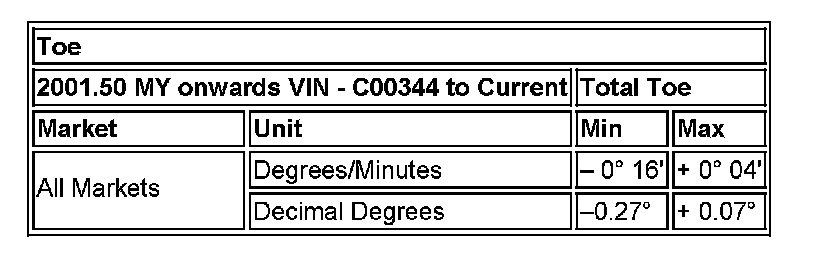

Wheel Alignment - Front Toe

NOTE:
^ All the above figures are with 20 liters of fuel.
^ Tires must be inflated to normal pressure
