Window Frame: Service and Repair



Roof Rail (76.43.86.60)

Removal

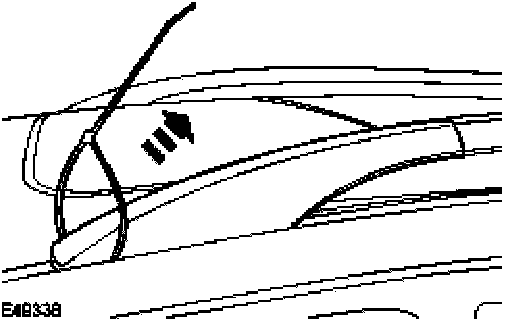

1. NOTE: Using a suitable tie strap remove the roof rail front trim.

Remove the roof rail front trim.

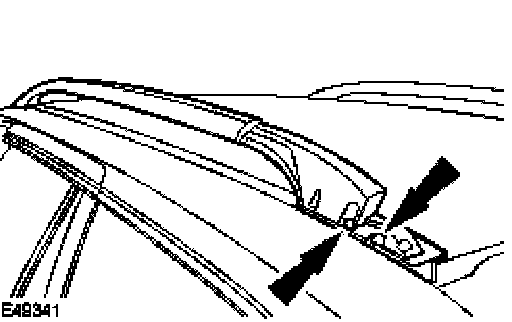

2. Remove the roof rail front retaining bolts.

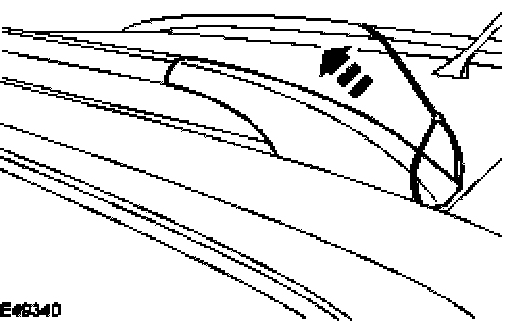

3. NOTE: Using a suitable tie strap remove the roof rail rear trim.

Remove the roof rail rear trim.

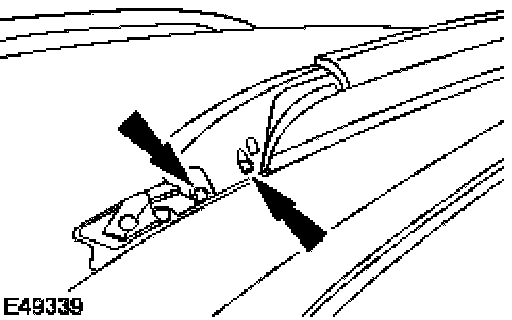

4. NOTE: Remove and discard the seals.

Remove the roof rail.







Installation

1. NOTE: Install new seals.

To install, reverse the removal procedure.
- Tighten to 14 Nm.







2. Tighten to 14 Nm.
