Window Glass: Adjustments

Liftgate Window Glass Adjustment

1. Make sure the rear wiper mounting arm is in the parked position.







2. Open the liftgate window glass.
3. Open the liftgate.
4. Remove the liftgate trim panel.

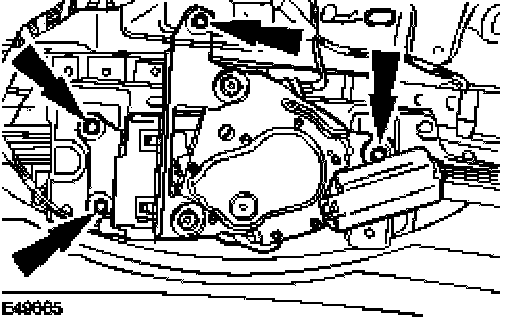

5. Loosen the rear wiper motor retaining nuts.







6. Close the liftgate.

7. NOTE: The aid of an assistant in the loadspace will be required to align the rear wiper motor to the liftgate window glass.

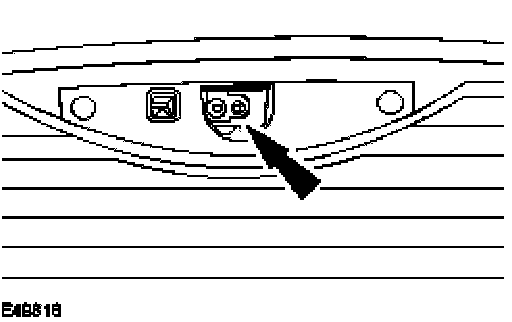

Make sure the liftgate glass latch and rear wiper mounting arm locate correctly into the liftgate latch actuator and rear wiper motor.







8. Close the liftgate glass.

9. CAUTION:
- With the aid of an assistant in the loadspace, fully tighten the rear wiper motor retaining nuts. Failure to follow this instruction may result in damage to the vehicle.
- Make sure the rear wiper motor does not move whilst tightening the retaining nuts. Failure to follow this instruction may result in damage to the vehicle.

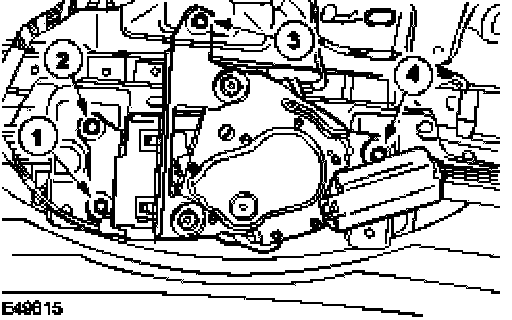

Tighten the rear wiper retaining bolts in the order shown.
- Tighten to 8 Nm.







10. Visually check the liftgate window glass for correct alignment.
11. Install the liftgate trim panel.
