Window Shade: Service and Repair

Rear Window Blind (76.14.04)

Removal

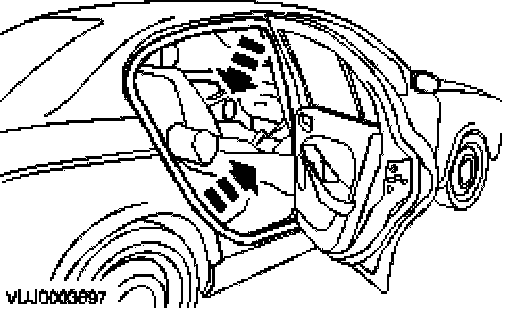

1. Detach the rear door opening weather-strips.







2. Remove the rear seat side bolster.
3. Remove the C-pillar trim panels.
4. Detach the seat belt reel trim panels.

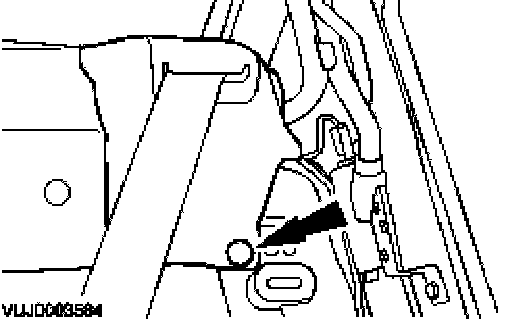

5. Remove the rear seat backrest latch covers.







6. Detach the parcel shelf trim panel.

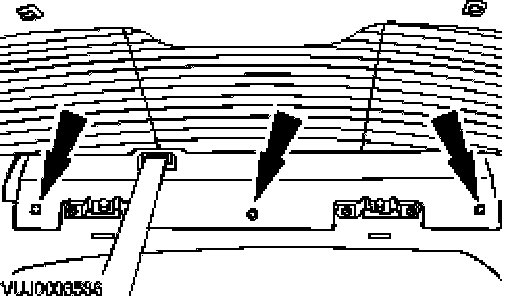

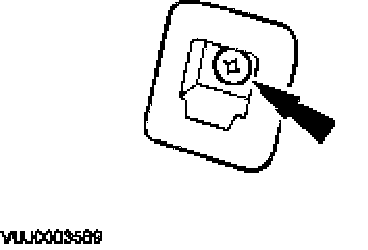

7. Remove the rear window blind retaining clips.

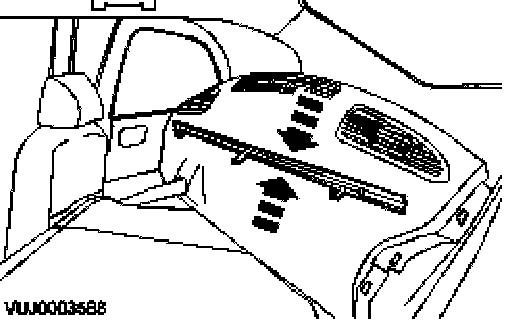

8. Remove the rear window blind.
- Press the sides of the rear window blind inwards.

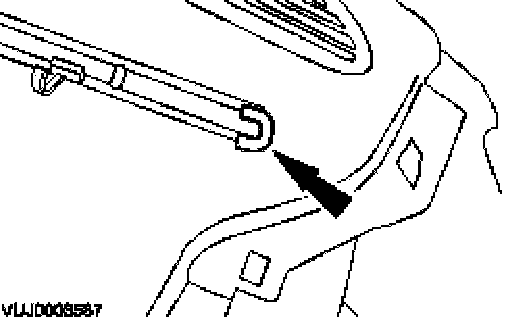

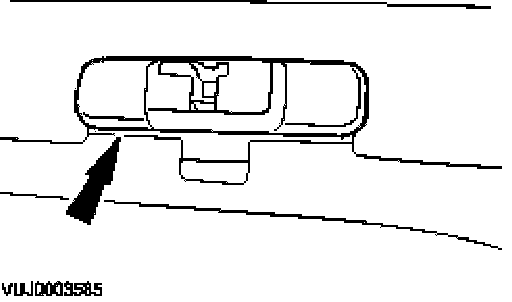

9. Remove the rear window blind roof fixing.







Installation
1. To install, reverse the removal procedure.
