Front Fender



Front Fender

Removal

1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

2. Remove the rocker panel moulding.
3. Release the front of the fender splash shield.
- Remove the 4 Torx screws.







4. Open the hood.
5. Open the door.

6. CAUTION: Protect the paintwork during this operation.

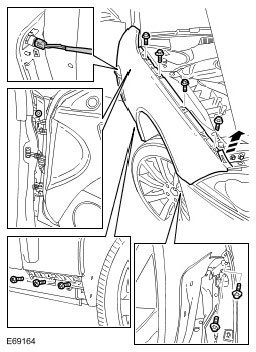

Remove the front fender.
- Remove the 12 bolts.
- Release the headlamp clip.
- Carefully release the fender.
- Disconnect the electrical connector.







7. NOTE: Do not disassemble further if the component is removed for access only.

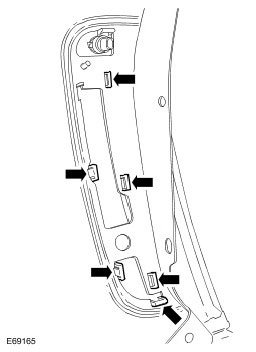

Remove the fender moulding assembly.
- Release the 6 clips.







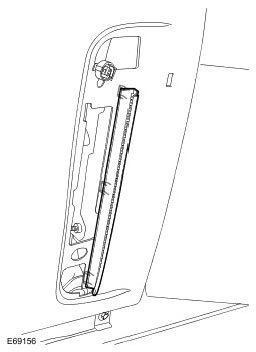

8. Remove the inner grille.
- Carefully release the 3 clips.







Installation

1. Install the inner grille.
- Secure the clips.

2. Install the fender moulding assembly.
- Carefully align and secure the clips.

3. Install the front fender.
- Connect the electrical connector.
- Tighten the bolts to 10 Nm (7 lb.ft).
- Secure the headlamp clip.

4. Install the fender splash shield, front section.
- Install the Torx screws.

5. Install the rocker panel moulding.
