Seat Back: Service and Repair



Front Seat Backrest (76.70.06)

Removal

1. Make the air bag supplemental restraint system (SRS) safe.
2. Disconnect the battery ground cable.
3. Remove the front seat.

4. WARNING: This step requires the aid of another technician.

CAUTION: Take extra care when handling the component.

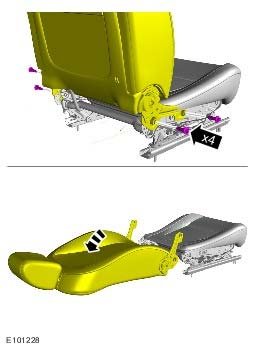

Remove the front seat backrest assembly.







5. Remove the front seat backrest cover.
6. Remove the backrest halo panel.
- Release the 5 wiring harness clips.

7. NOTE: Do not disassemble further if the component is removed for access only.

Remove the front seat recliner motor.

8. Remove the lumbar assembly.
9. Remove the front seat head restraint motor.

Installation

1. To install, reverse the removal procedure.
- TORQUE: 35 Nm







2. If a new component has been installed, configure using Jaguar approved diagnostic equipment.
