Headlamp Leveling Front Sensor

Headlamp Leveling Front Sensor

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.

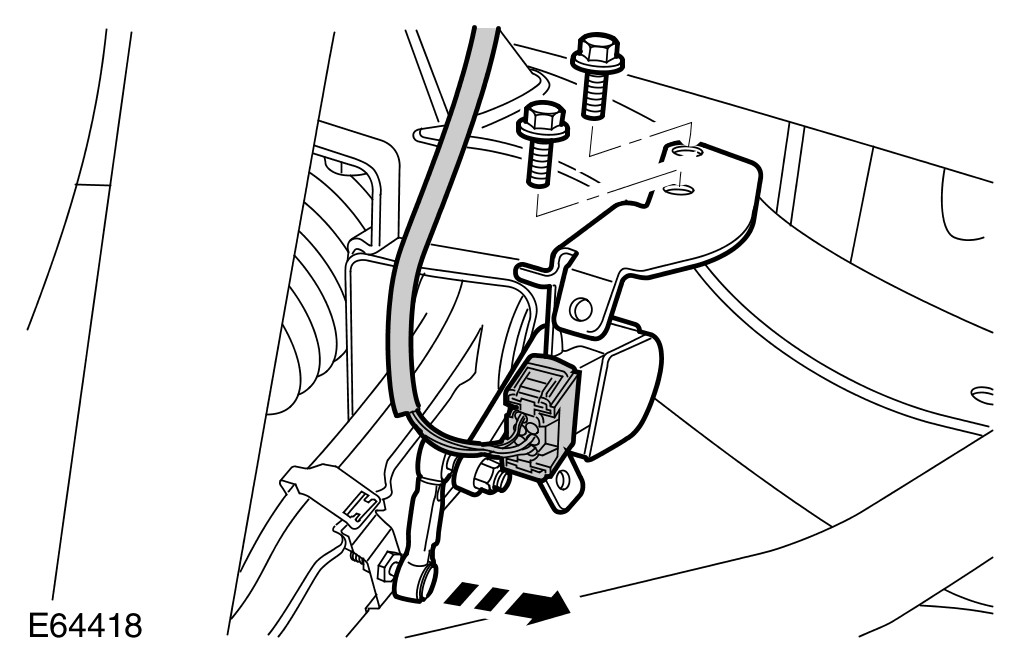

2 Remove the headlamp leveling sensor.
- Disconnect the height sensor link.
- Disconnect the electrical connector.
- Remove the 2 bolts.
3
NOTE:
Do not disassemble further if the component is removed for access only.
Remove the height sensor link.




4
NOTE:
Note the fitted position.

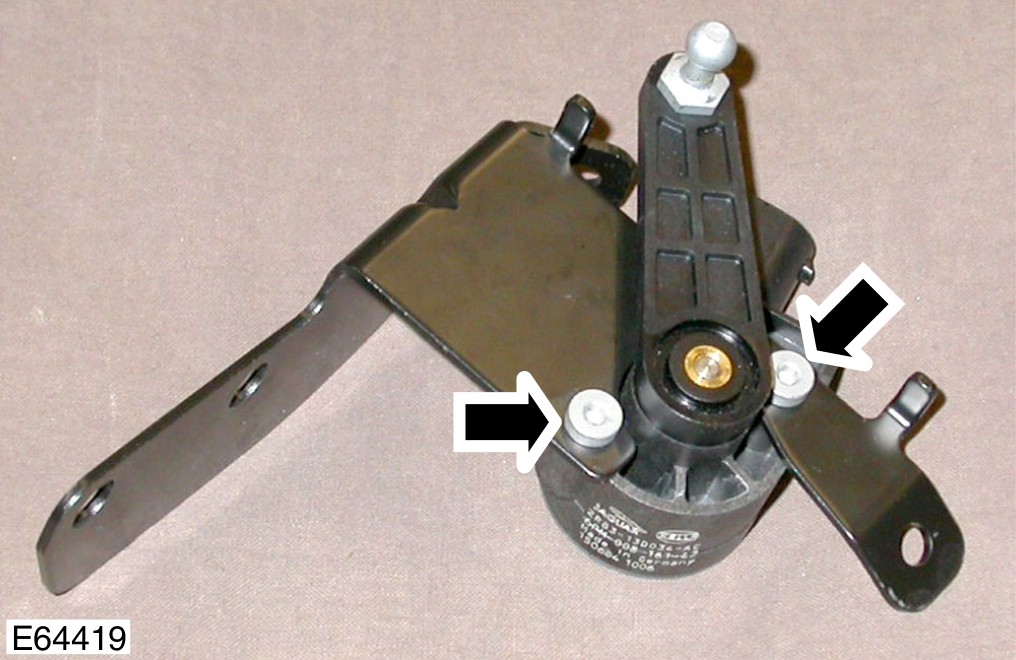

Remove the bracket.
- Remove the 2 Allen bolts.

Installation





1
NOTE:
Align to the position noted on removal.
Install the bracket.
- Tighten to 5 Nm.
2 Install the height sensor link.




3 Install the headlamp leveling sensor.
- Tighten to 25 Nm.
- Connect the electrical connector.
- Connect the height sensor link.
