Headlamp Leveling Rear Sensor





Headlamp Leveling Rear Sensor

Removal
1
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.

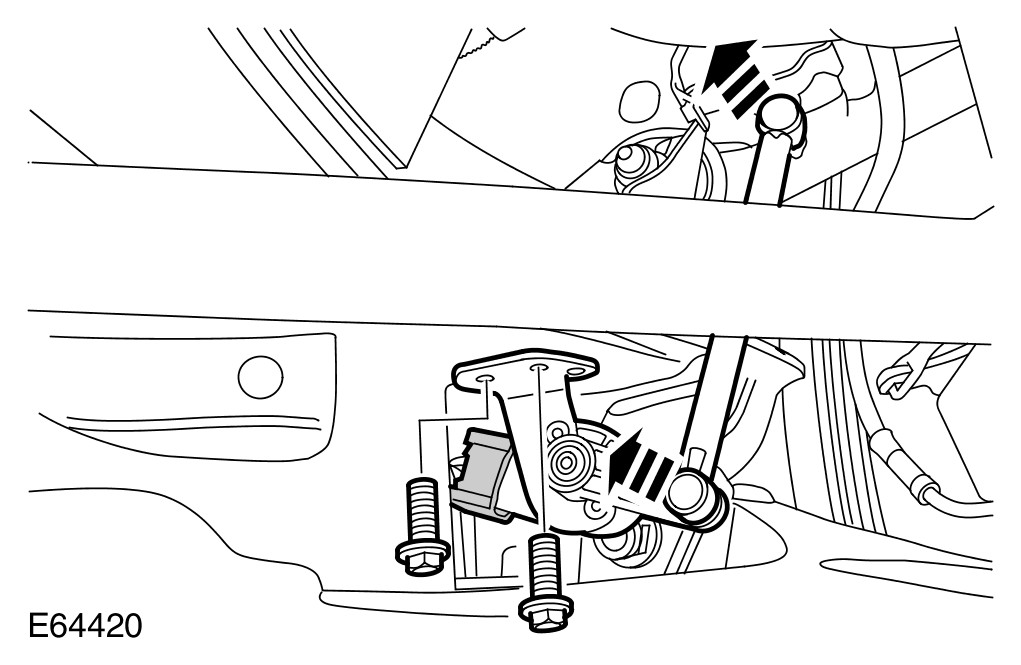

2 Remove the headlamp leveling sensor.
- Disconnect the height sensor link.
- Release and disconnect the electrical connector.
- Remove the 2 bolts.




3
NOTE:
Do not disassemble further if the component is removed for access only.
NOTE:
Note the fitted position.

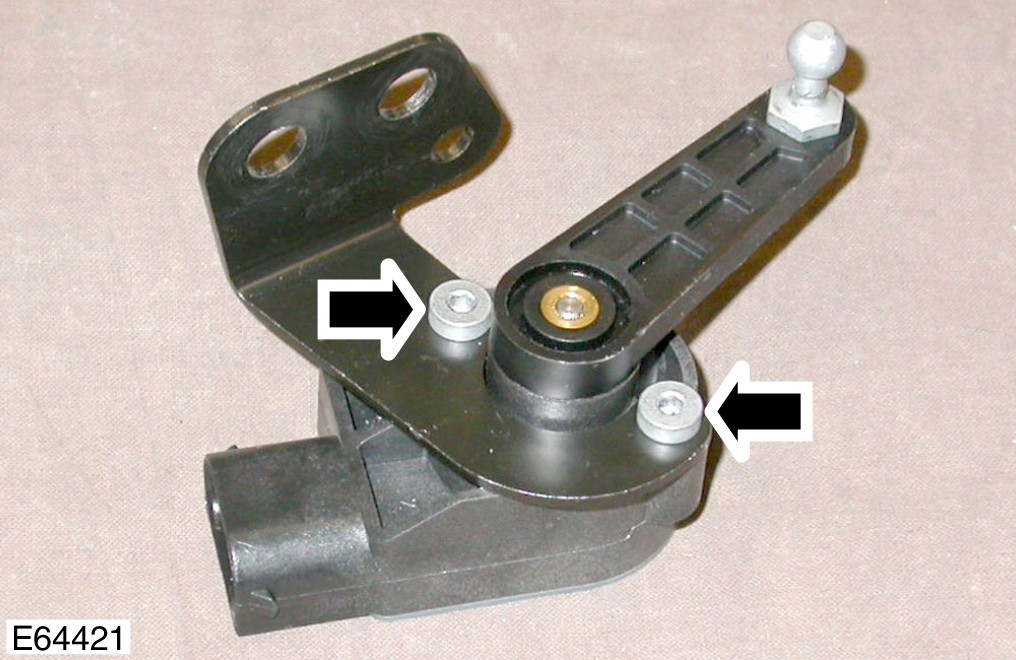

Remove the bracket.
- Remove the 2 Allen bolts.

Installation





1
NOTE:
Align to the position noted on removal.
Install the bracket.
- Tighten to 5 Nm.




2 Install the headlamp leveling sensor.
- Tighten to 25 Nm
- Connect the electrical connector.
- Install the height sensor link.
